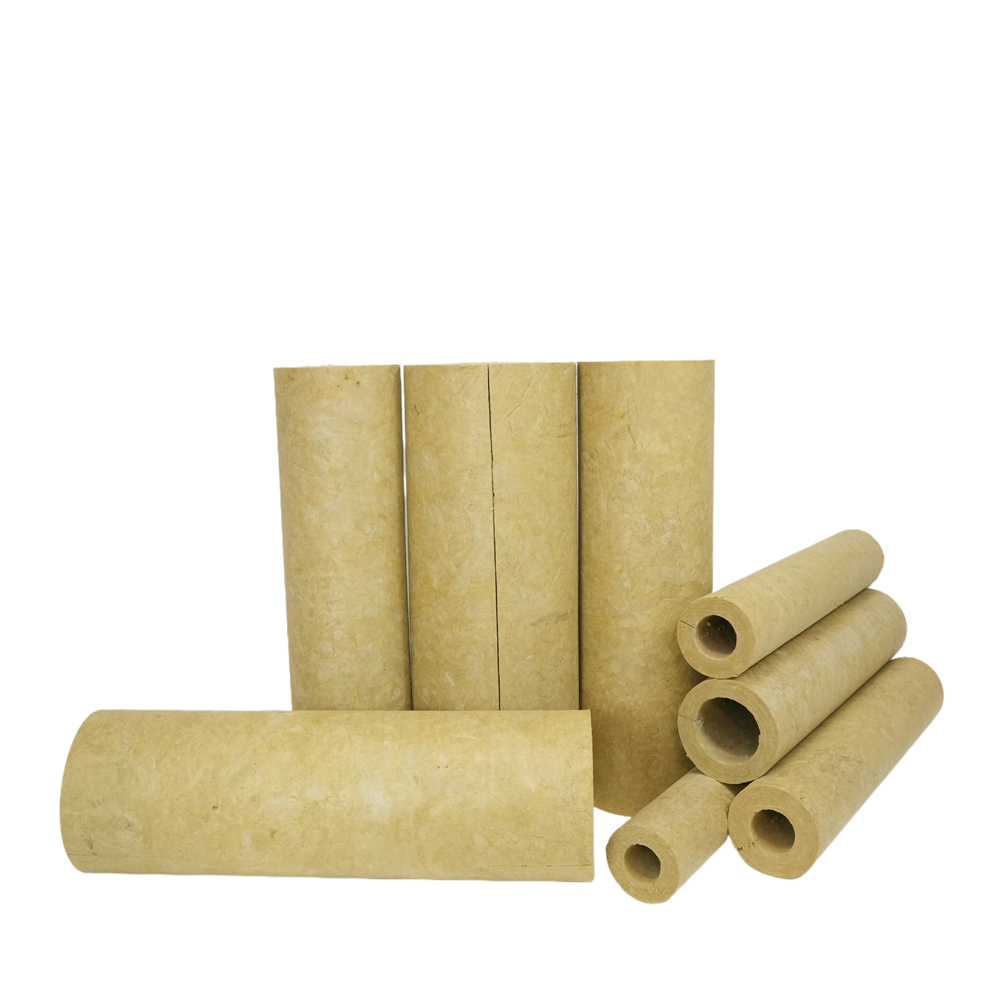

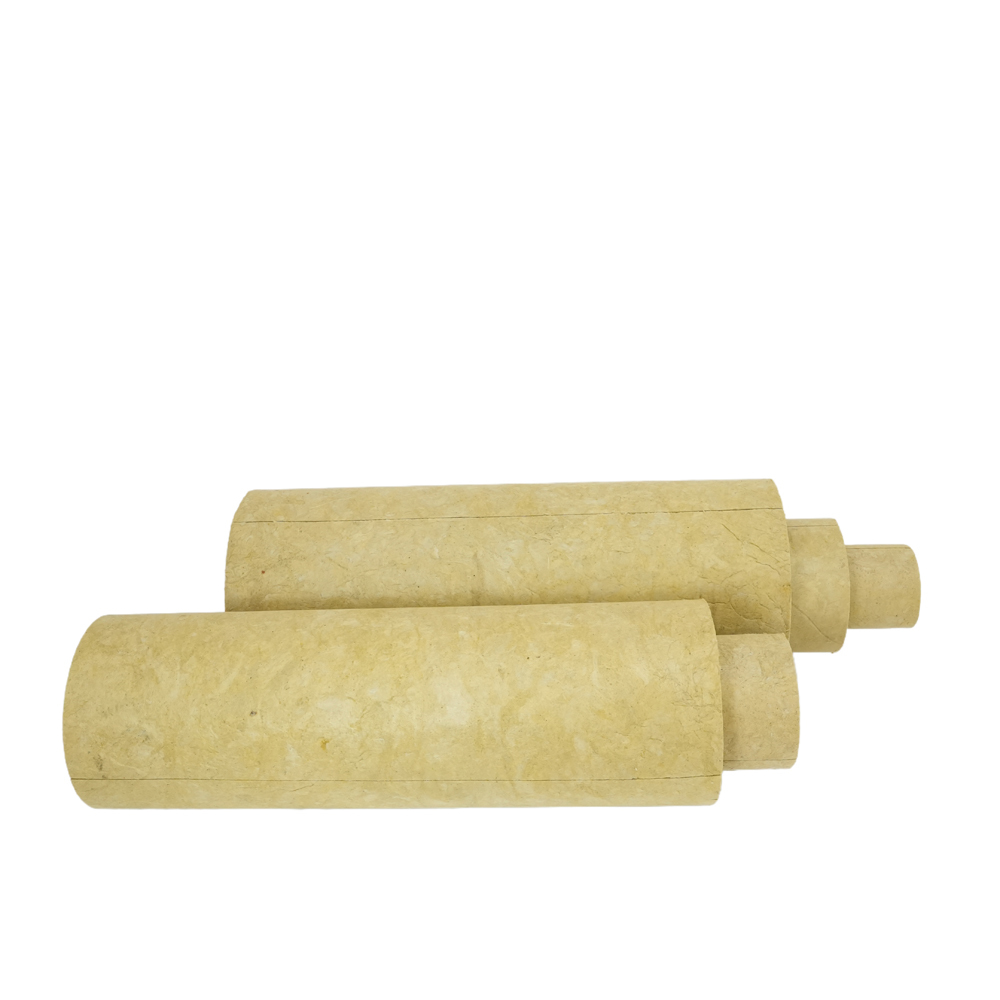

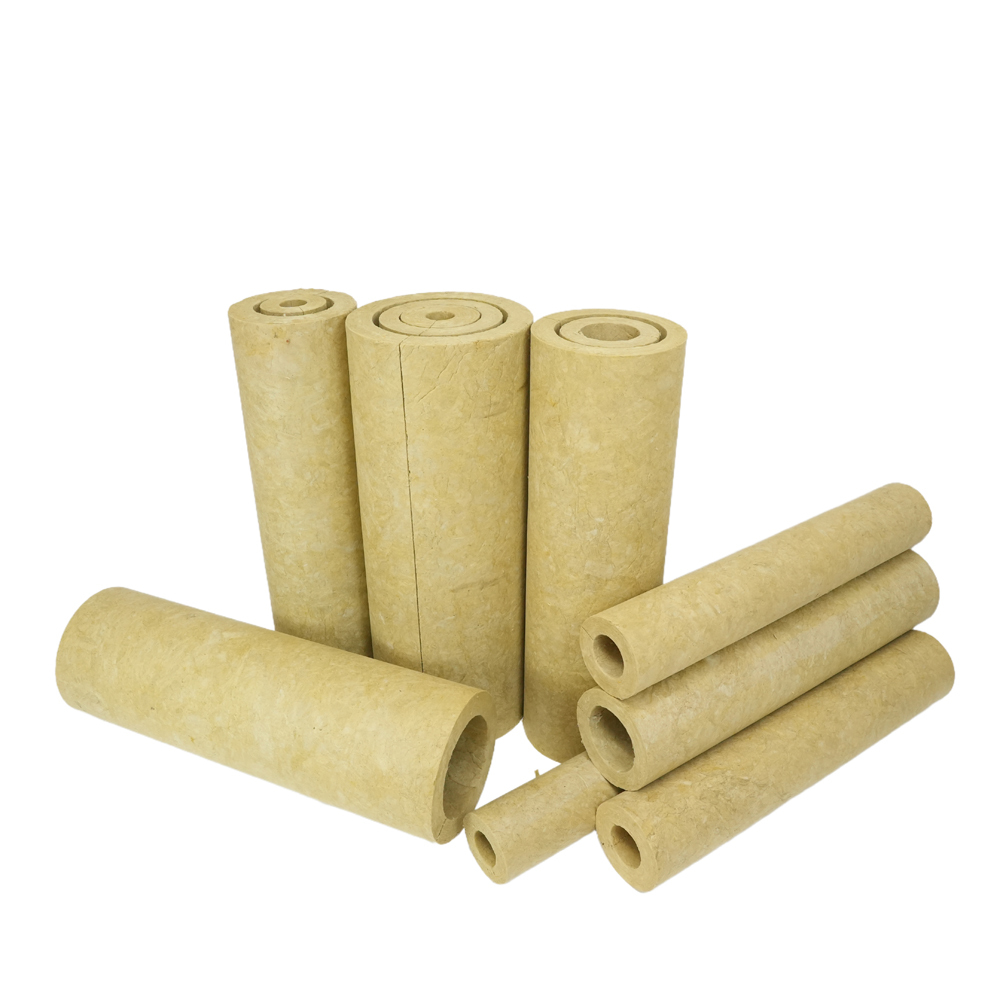

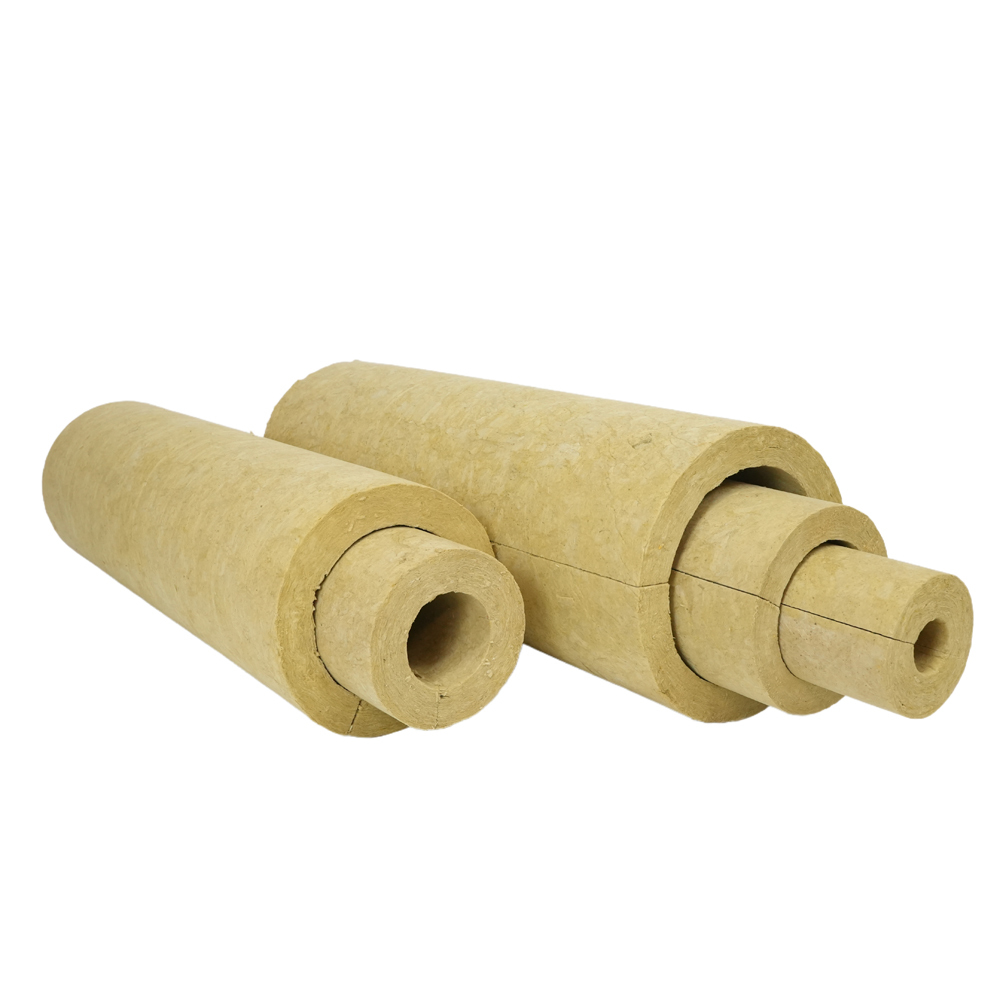

FANRYN Rock Wool Pipe - High-Performance Thermal Insulation for Industrial Applications
FANRYN Rock Wool Pipe is a rigid, lightweight insulation product specifically designed for pipe systems in industrial, commercial, and energy facilities. It is manufactured from natural volcanic rock (basalt) and limestone, which are melted at over 1450°C and spun into fine, high-quality fibers. These fibers are then bonded with thermosetting resin and formed into pipe sections that provide excellent thermal and acoustic insulation.
Physical & Technical Specifications
| Property |
Value / Range |
Standard |
| Density Tolerance |
±15% |
GB/T 19686-2005 |
| Fire Performance |
Non-combustible / Class A1 |
GB/T 5464-1999 |
| Thermal Conductivity (70°C) |
≤ 0.044 W/mK |
GB/T 10295 |
| Fiber Diameter |
7 ± 1 µm |
GB/T 5480.4 |
| Shot Content (>0.25mm) |
≤ 12% |
– |
| Eccentricity (pipe shell) |
≤ 5 mm |
– |
Available Dimensions
Choose from a wide range of pipe diameters and insulation thicknesses to meet your project requirements.
- Diameter Range: 22 mm (1/2") up to 610 mm (24")
- Thickness Range: 25 mm to 150 mm
- Length: Standard 1 m sections (custom lengths available upon request)
For full availability by diameter and thickness, please refer to our complete size chart.
Applications
- Power plants
- Oil refineries and petrochemical facilities
- Industrial heating and cooling systems
- HVAC ductwork
- Marine and offshore pipe insulation
- District heating networks
Ideal for both indoor and outdoor installations, with or without cladding.
Packaging
- Standard export packaging: Plastic-wrapped bundles
- Moisture-proof and stackable for safe transport and storage
- Custom packaging available for large-volume orders
Frequently Asked Questions
Q: Can you produce non-standard sizes?
A: Yes. We offer made-to-order services for special diameters, thicknesses, or densities.
Q: Is the pipe suitable for outdoor use?
A: Yes, with proper cladding or weatherproof covering.
Q: How is the product packed for export?
A: Each pipe section is wrapped in plastic and bundled for safe shipping.
Q: What if the product arrives damaged?
A: Please contact us immediately with photos. We will evaluate and offer a solution — replacement or compensation.
