| उत्पत्ति के प्लेस: | चीन |
|---|---|
| ब्रांड नाम: | FANEYN |
| प्रमाणन: | CE |
| न्यूनतम आदेश मात्रा: | एक 40HQ |
| पैकेजिंग विवरण: | पीई बैग |
| प्रसव के समय: | 10 कार्य दिवस |
| भुगतान शर्तें: | टी/टी |
| आवेदन: | इमारतों, औद्योगिक उपकरणों के लिए थर्मल इन्सुलेशन | DIMENSIONS: | आमतौर पर 600 मिमी x 1200 मिमी |
|---|---|---|---|
| इंस्टॉलेशन तरीका: | यांत्रिक फिक्सिंग या चिपकने वाला बंधन | रंग: | पीला से भूरा |
| तापमान प्रतिरोध: | -180°C से 700°C | ध्वनि अवशोषण गुणांक: | 0.85 |
| प्रोडक्ट का नाम: | थर्मल इन्सुलेशन खनिज ऊन | मोटाई: | 25 मिमी से 150 मिमी |
| घनत्व: | 40-200 किग्रा/वर्ग मीटर | पर्यावरणीय प्रभाव: | पुन: प्रयोज्य, पर्यावरण-अनुकूल |
| जलअवशोषण: | <1% | आग प्रतिरोध: | गैर-दहनशील, कक्षा ए1 |
| ऊष्मीय चालकता: | 0.035 डब्लू/एम·के | सामग्री: | खनिज ऊन |
| संपीड़न ताकत: | ≥10 केपीए |

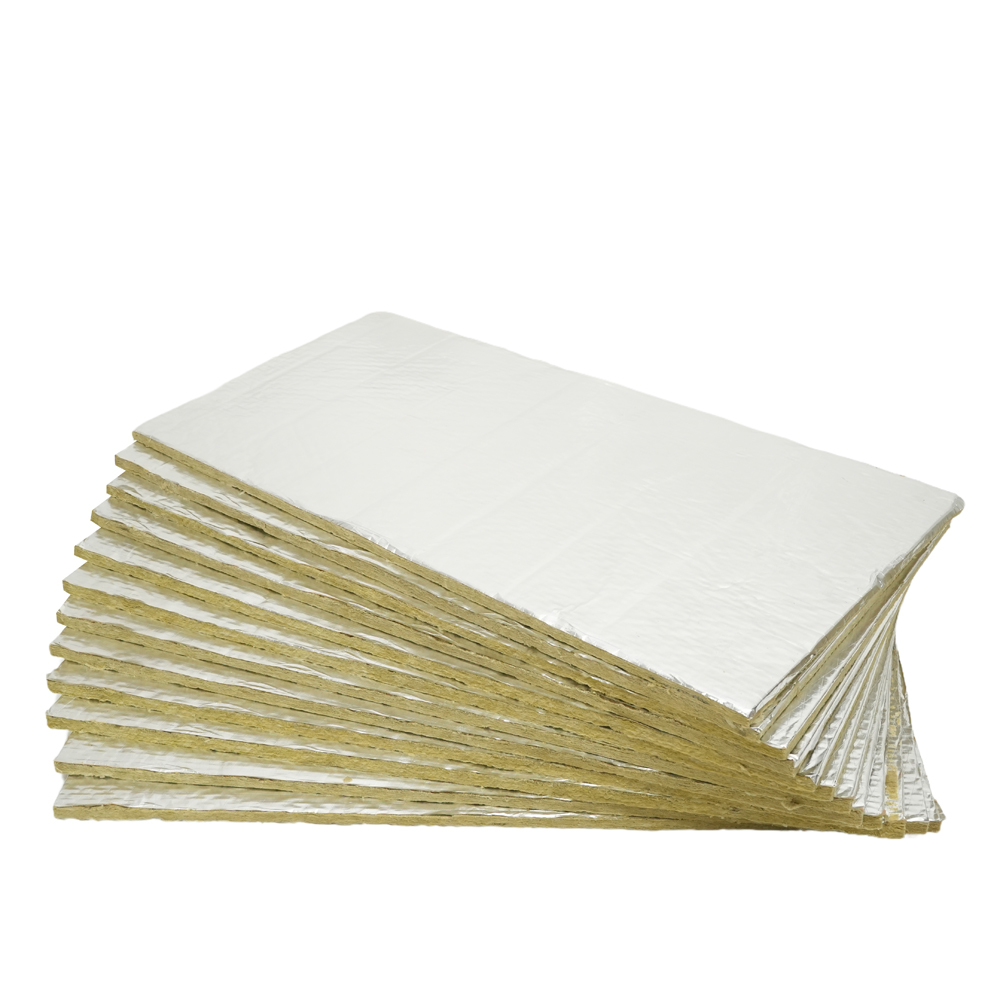

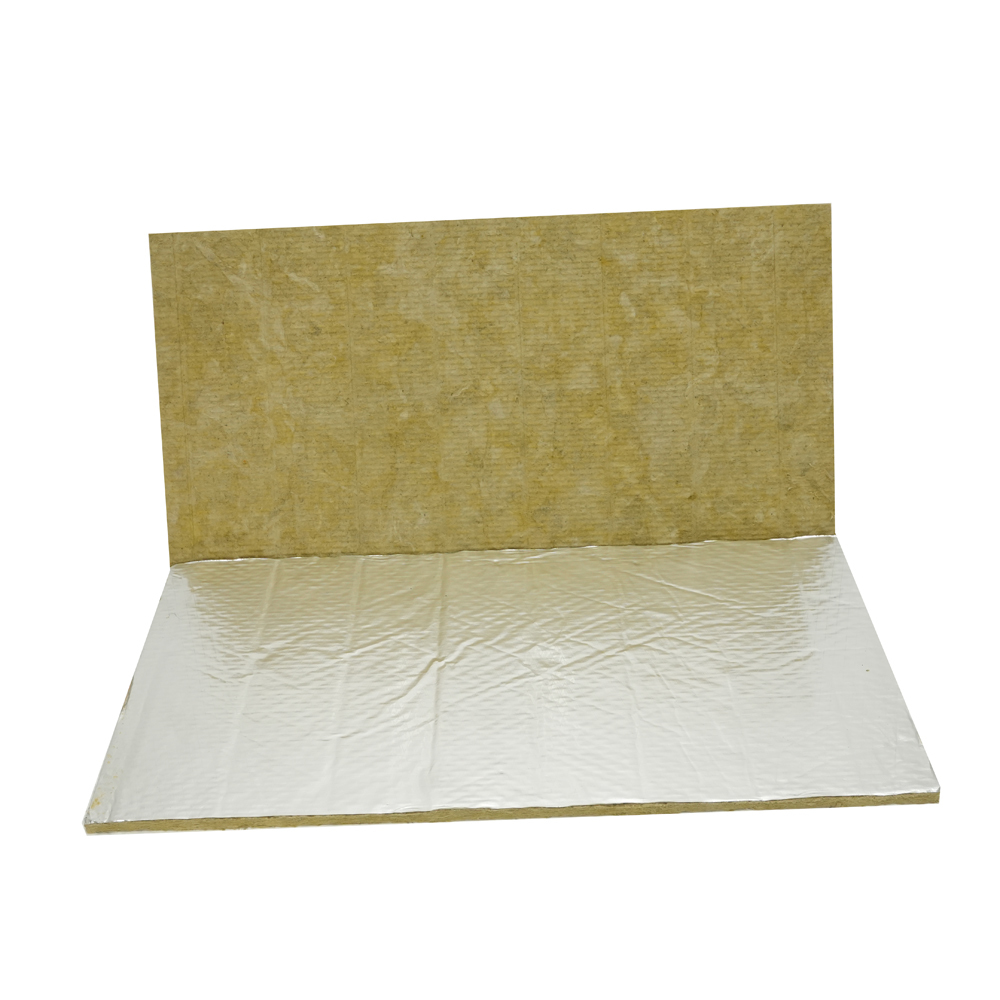

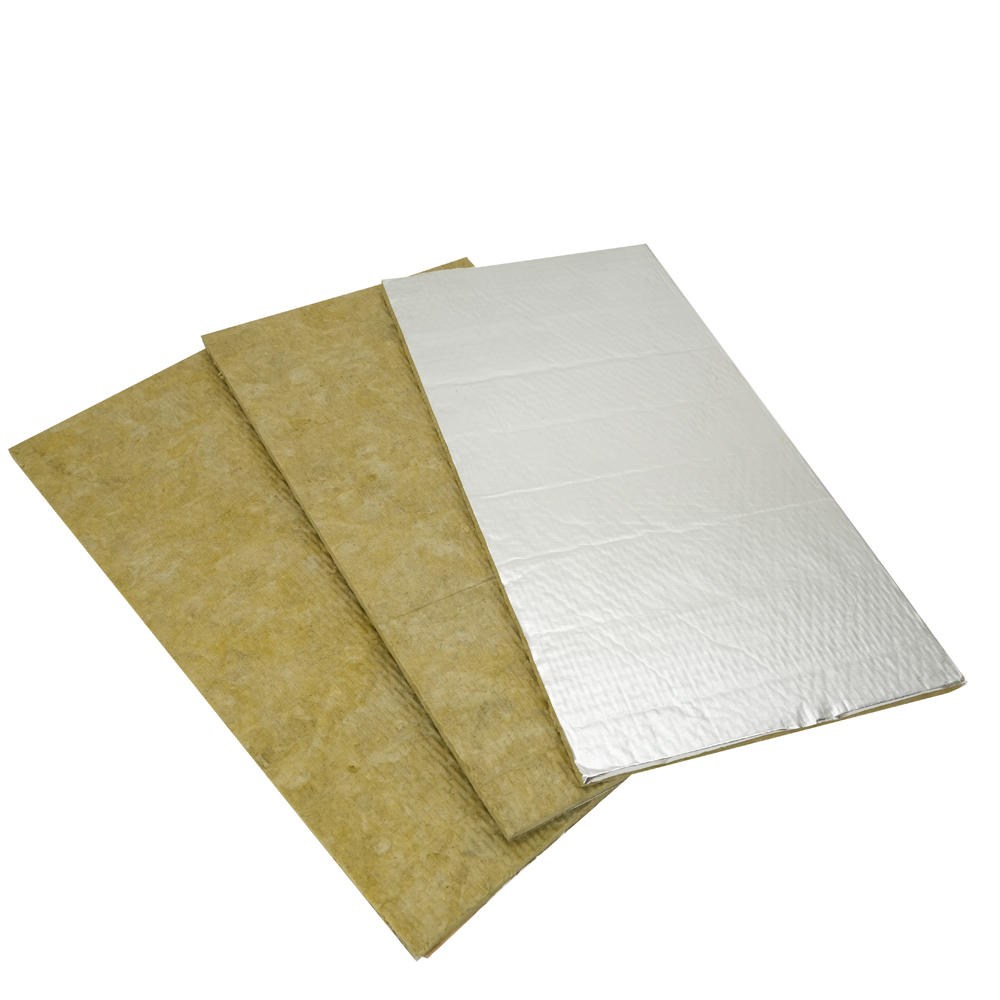

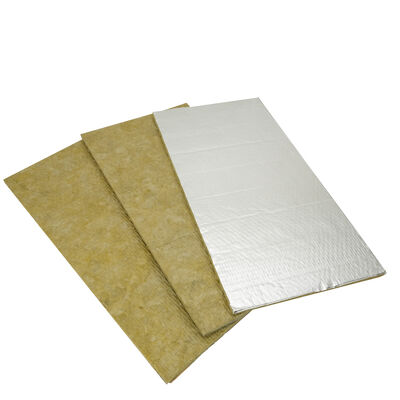

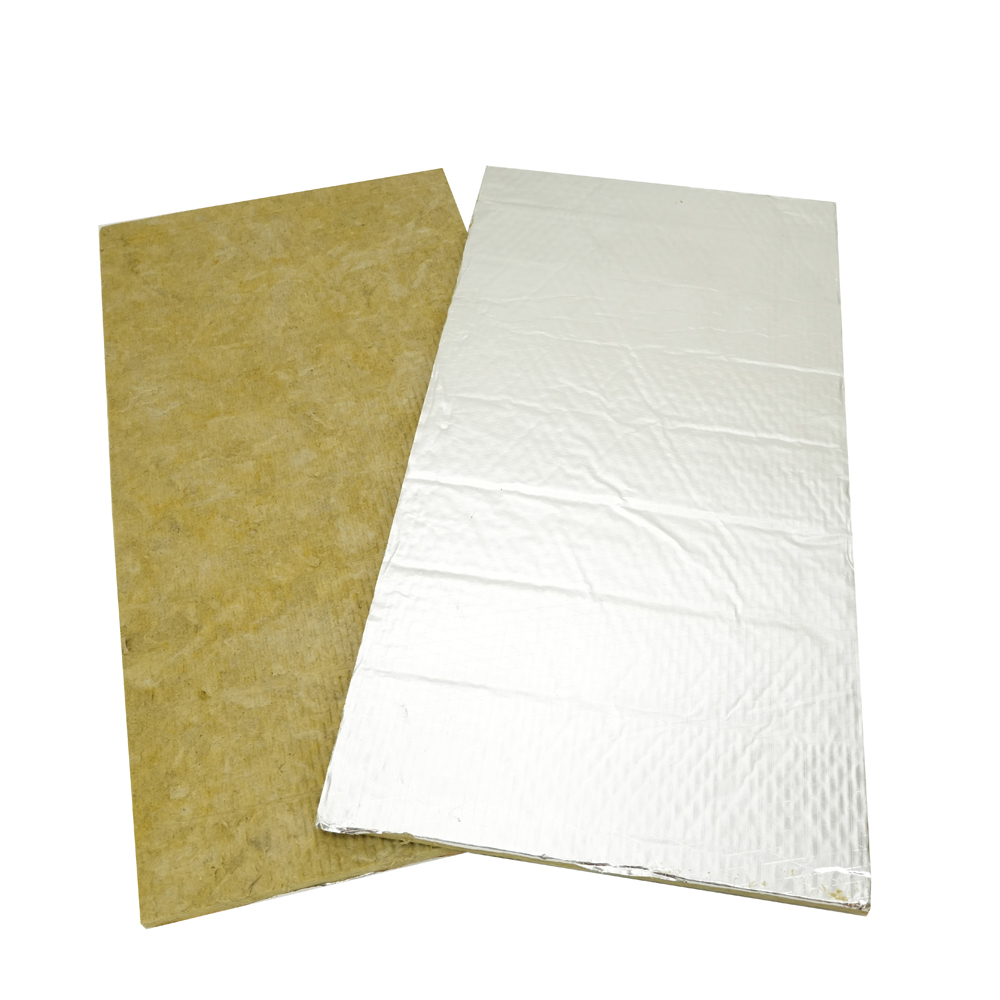

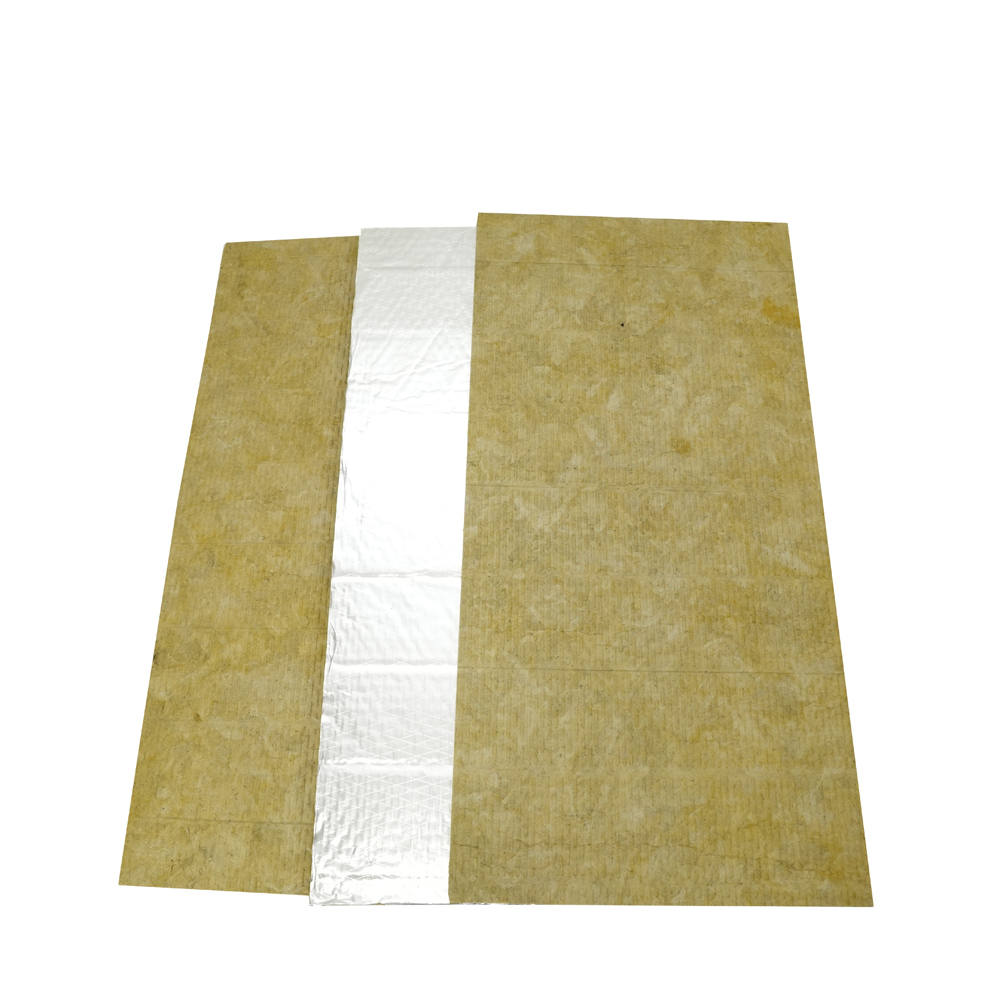

Rock wool board is a rigid insulation panel manufactured from natural basalt rock and recycled slag. The raw materials are melted at temperatures exceeding 1,500°C and spun into fine fibers, which are then bonded with a thermosetting resin and pressed into stable, rigid boards. The result is a dense, porous material that provides outstanding thermal, acoustic, and fire-resistant performance in a wide range of building and industrial applications.
| Feature | Benefit |
|---|---|
| A1 Non-combustible | Highest fire safety rating; melting point above 1,000°C; prevents flame spread |
| Low Thermal Conductivity | ≤0.044 W/(m·K) at 70°C for excellent energy efficiency |
| High Sound Absorption | Dense fiber structure effectively reduces mid-to-low frequency noise |
| Low Moisture Absorption | ≤0.5% water content; resists mold, rot, and corrosion |
| Dimensionally Stable | Maintains shape and performance over time |
| Easy to Install | Can be cut on-site with standard tools; suitable for irregular spaces |
| Eco-friendly | Made from natural stone; asbestos-free and non-toxic |
| Parameter | Specification |
|---|---|
| Density Range | 24 – 96 kg/m³ |
| Density Tolerance | ±10% |
| Thickness Range | 25 – 100 mm (customizable) |
| Length Range | 600 – 2,400 mm (customizable) |
| Width Range | 600 – 1,250 mm (customizable) |
| Thermal Conductivity | ≤0.044 W/(m·K) at 70±5°C |
| Fiber Diameter | 7 ± 1 μm |
| Shot Content (>0.25mm) | ≤12% |
| Moisture Content | ≤0.5% |
| Organic Matter Content | ≤4% |
| Melting Point | >1,000°C |
| Fire Rating | A1 Non-combustible |
Foil-Scrim-Kraft Facing
Alum Glass Cloth Facing
Fiberglass Tissue
Unfaced boards are also available.
Standard: Plastic bag packaging
Custom packaging options available upon request
Building exterior wall insulation systems
Curtain wall fire barriers and cavity walls
Roof and ceiling insulation
HVAC duct insulation
Industrial pipe and equipment insulation
Core material for sandwich panels
Soundproofing in machine rooms, studios, and theaters
Marine and offshore insulation
