| उत्पत्ति के प्लेस: | चीन |
|---|---|
| ब्रांड नाम: | FANRYN |
| न्यूनतम आदेश मात्रा: | 1 40 एचसी |
| पैकेजिंग विवरण: | प्लास्टिक बैग |
| प्रसव के समय: | 15 कार्य दिवस |
| भुगतान शर्तें: | टी/टी |
| सम्पीडक क्षमता: | ≥10 kPa | ऊष्मीय चालकता: | 0.035 डब्लू/एम·के |
|---|---|---|---|
| अनुप्रयोग: | भवन इन्सुलेशन, औद्योगिक इन्सुलेशन, एचवीएसी सिस्टम | आग प्रतिरोध: | गैर-दहनशील, कक्षा ए1 |
| घनत्व: | 40-200 किग्रा/वर्ग मीटर | जल अवशोषण: | 1% से कम |
| ध्वनि अवशोषण गुणांक: | 0.85 | मोटाई रेंज: | 25 मिमी से 150 मिमी |
| वाष्प पारगम्यता: | उच्च | सामग्री: | खनिज ऊन |
| पर्यावरणीय प्रभाव: | पुन: प्रयोज्य और पर्यावरण-अनुकूल | DIMENSIONS: | बोर्ड, रोल और स्लैब में उपलब्ध है |
| इंस्टॉलेशन तरीका: | मैकेनिकल फिक्सिंग या चिपकने वाला बंधन | तापमान प्रतिरोध: | -270°C से 700°C |
| प्रमुखता देना: | vapor barrier pipe insulation,mineral wool pipe insulation,humid environment pipe insulation |
||

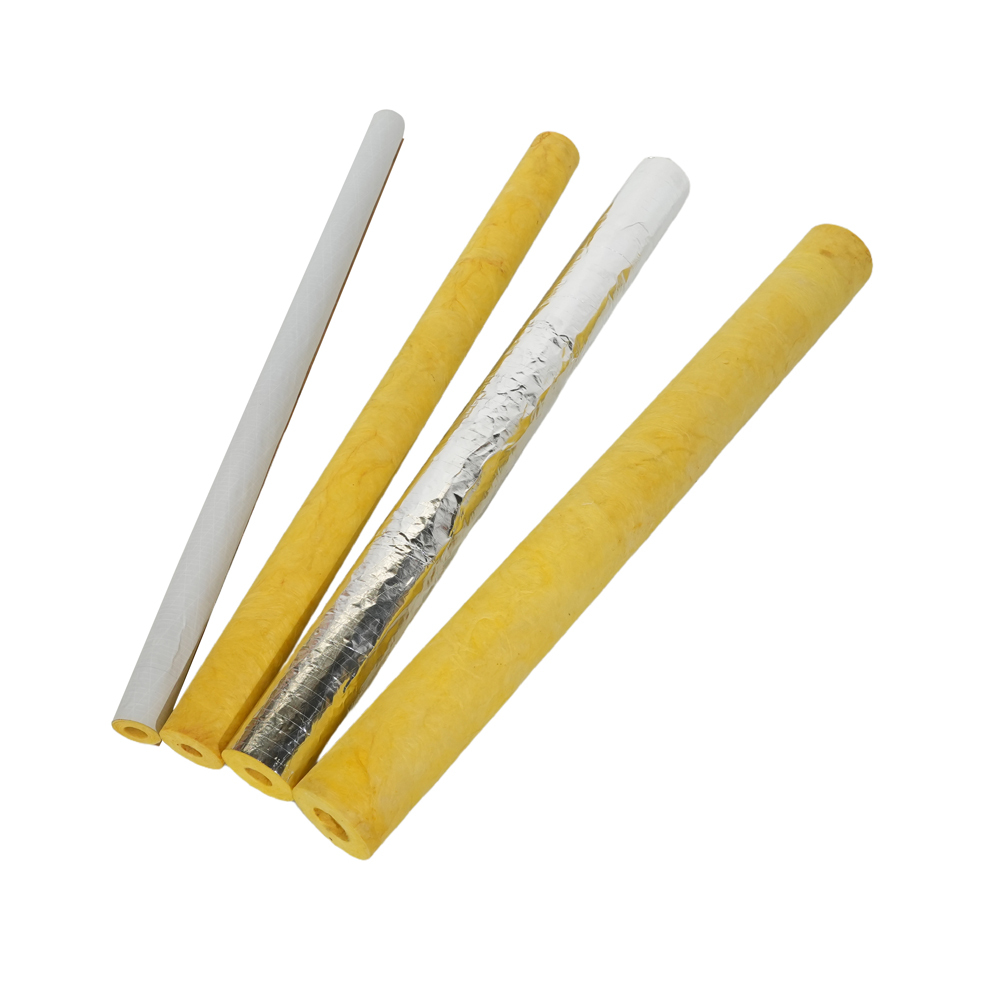

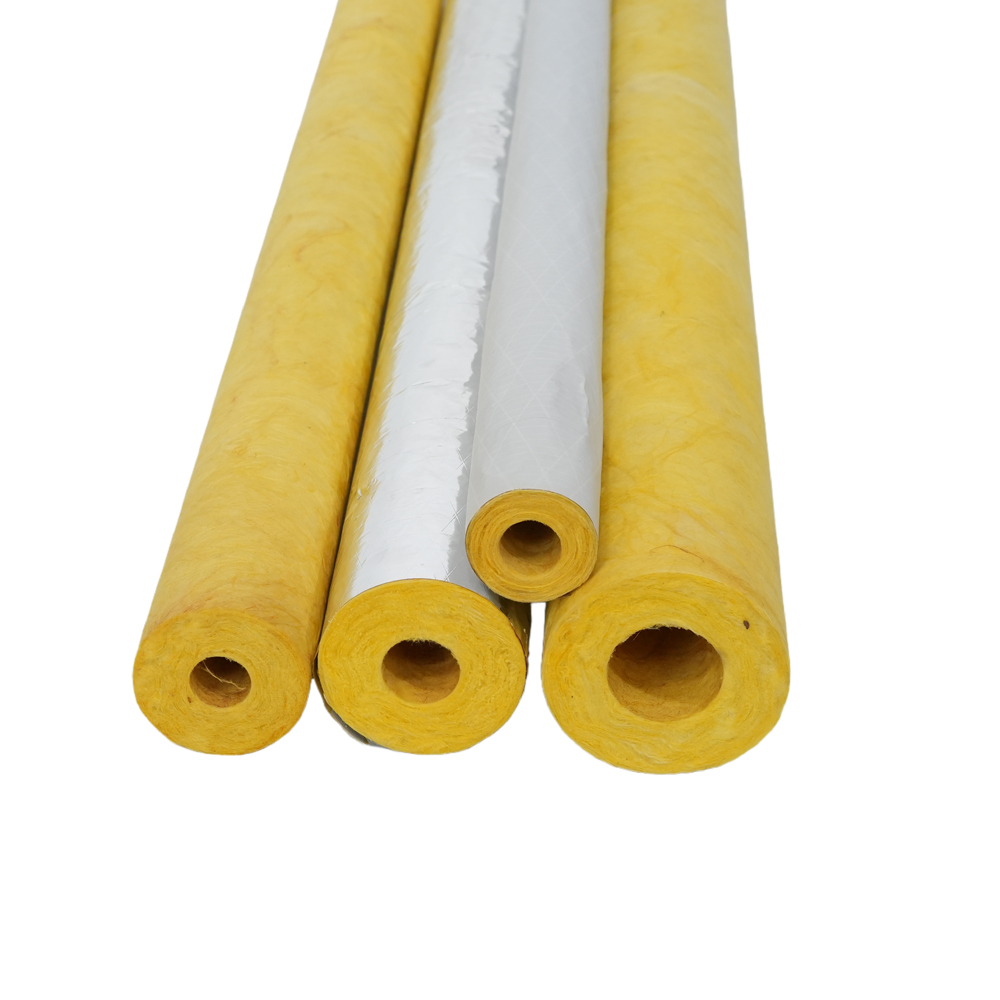

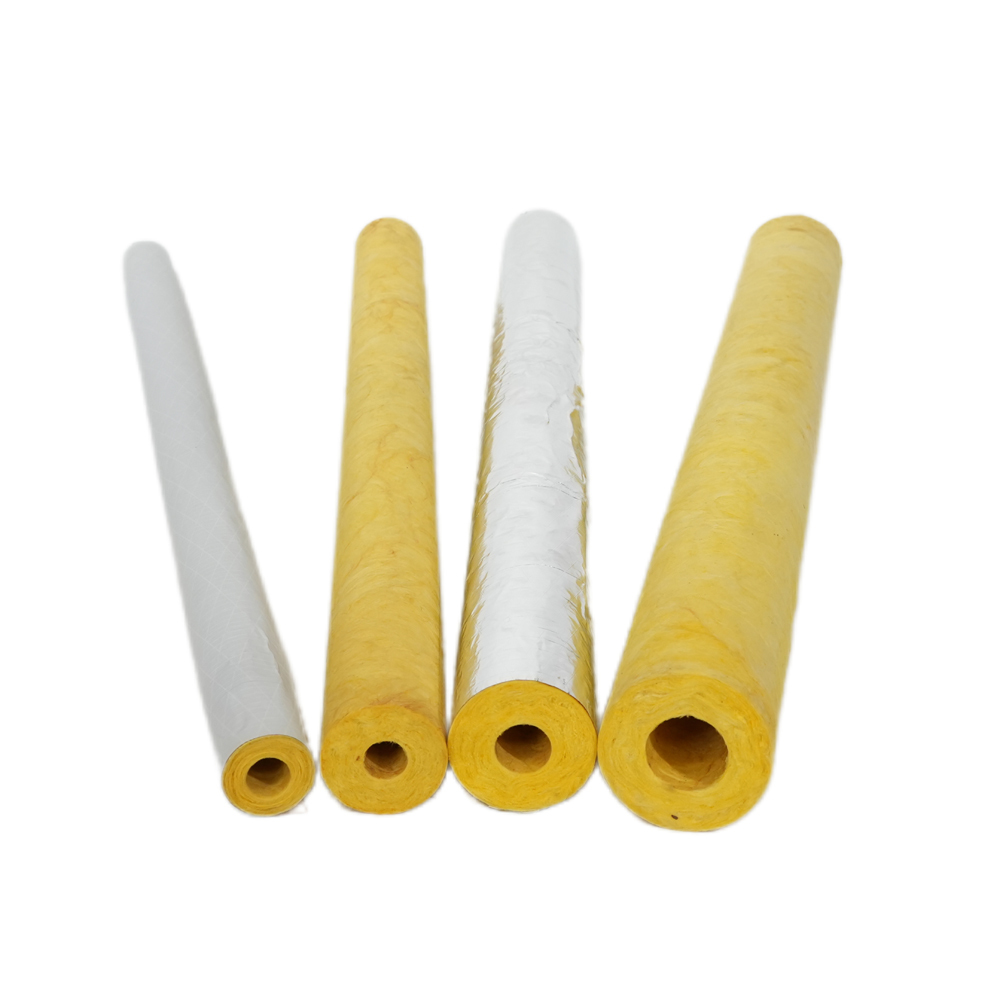

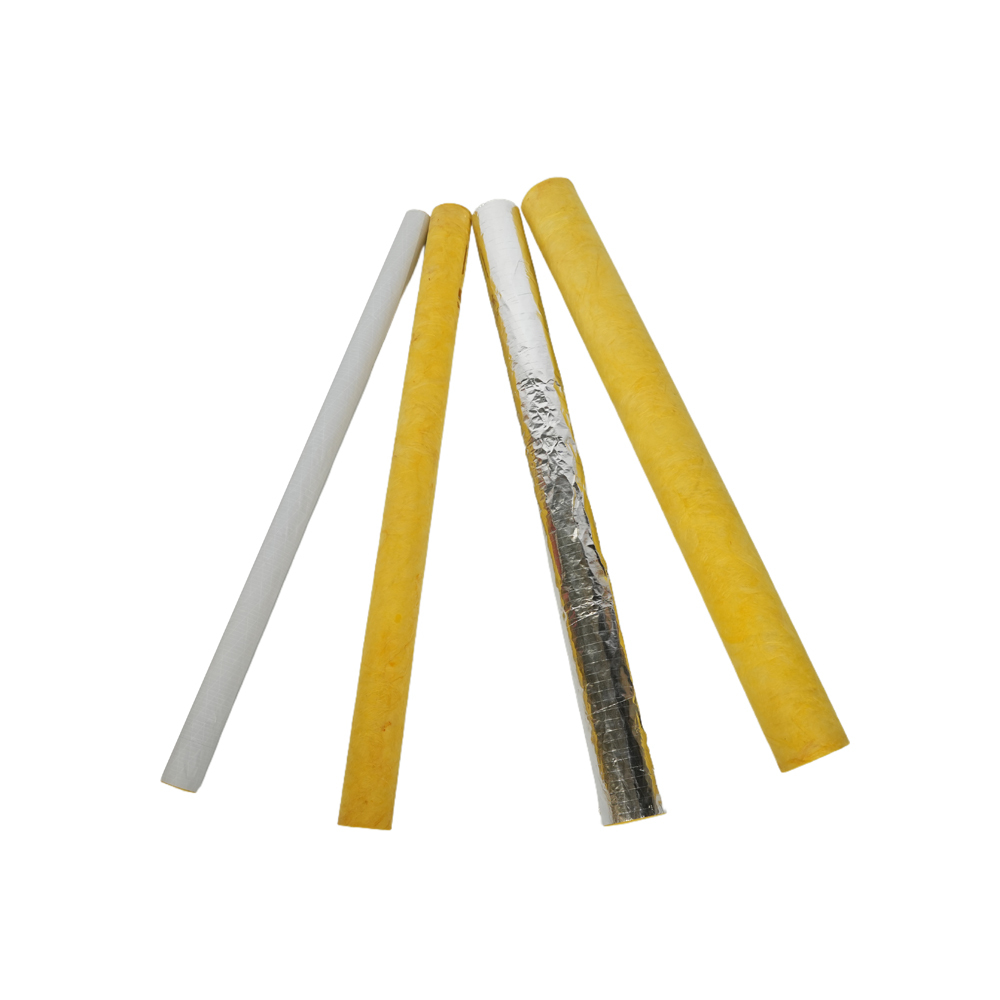

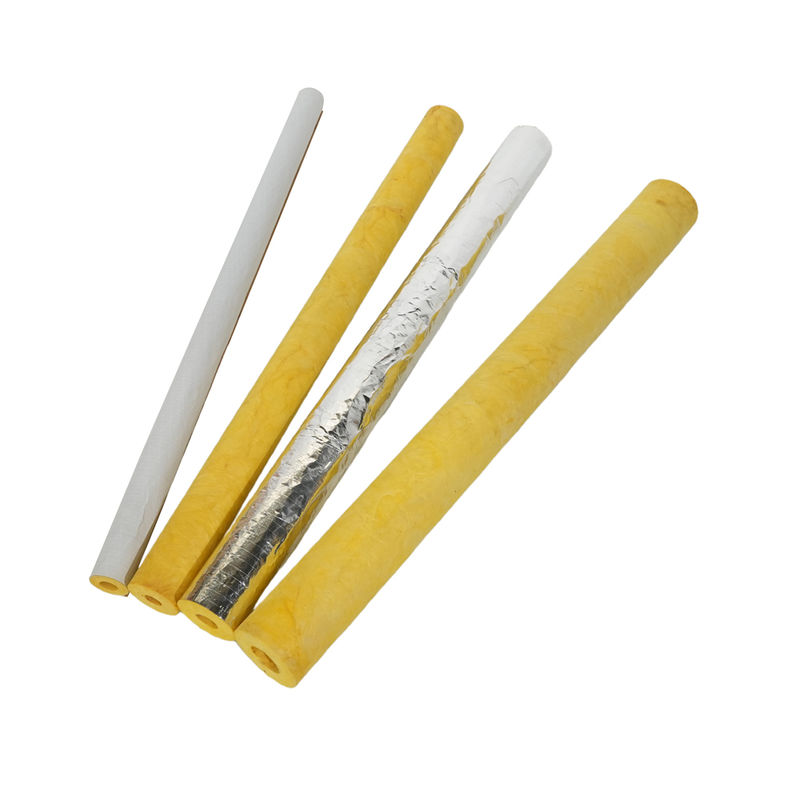

Product introduction of the glass wool pipe
Maximize insulation performance in challenging, humid conditions with our faced Glass Wool Pipe Sections. Available with Foil-Scrim-Kraft (FSK) or Alum Glass Cloth facings, these products include a built-in vapor retarder that protects the insulation from moisture ingress. This is critical for preventing a loss of thermal performance and fiber degradation, ensuring long-term reliability and efficiency in environments like swimming pools, food processing plants, and coastal areas.
Product parameter of the glass wool pipe
Recommend Thickness List(mm)
|
Pipeline System Type |
The Thickness of glasswood pipe shell applied in different pipeline(mm) |
||||||
|---|---|---|---|---|---|---|---|
|
Liquid Temperature Range℃ |
Diameter of Branches Under 50mm |
Under 25mm |
32-50 |
64-100 |
125-150 |
Above 200mm |
|
|
Air System Steaming and Water System High Temperature/ |
152-238 |
40 |
64 |
64 |
75 |
89 |
89 |
|
Medium Temperature/ |
122-151 |
40 |
50 |
64 |
64 |
75 |
75 |
|
low Temperature/ |
94-121 |
25 |
40 |
40 |
50 |
50 |
50 |
|
low Temperature System |
49-93 |
13 |
25 |
25 |
40 |
40 |
40 |
|
Steaming Condensator of Watering System |
Any Temperature |
25 |
25 |
40 |
50 |
50 |
50 |
Equivalent Thickness of Surface Cooling Prevention
|
Environment |
Relative Humidity |
System Working Temperature |
||
|---|---|---|---|---|
|
2℃ |
7℃ |
13℃ |
||
|
38℃ |
50%-60% |
25 |
25 |
25 |
|
70% |
40 |
30 |
30 |
|
|
80% |
75 |
60 |
50 |
|
|
85% |
100 |
90 |
75 |
|
|
32℃ |
50%-60% |
25 |
25 |
25 |
|
70% |
25 |
25 |
25 |
|
|
80% |
50 |
50 |
40 |
|
|
85% |
80 |
75 |
60 |
|
|
27℃ |
50%-70% |
25 |
25 |
25 |
|
80% |
50 |
40 |
30 |
|
|
85% |
75 |
65 |
50 |
|
|
21℃ |
50%-70% |
25 |
25 |
25 |
|
80% |
50 |
40 |
30 |
|
|
85% |
75 |
50 |
40 |
|
If the humidity exceeds 90%, some cooling water will appeared on the surface. In this condition, adding the waterproofing coat or PVC plastic shell if necessary.
Product size of the glass wool pipe
|
Density(kg/m3) |
Thickness(mm) |
Length (mm) |
Diameter (mm) |
|---|---|---|---|
|
48-80 |
25-90 |
1000,1200 |
18-529 |
Product feature and application of the glass wool pipe
Integrated Vapor Barrier: FSK or Alum Glass Cloth facing blocks moisture migration, protecting the insulation core.
Enhanced Durability: The facing adds surface strength and resistance to tearing during and after installation.
Clean & Professional Finish: Provides a neat, cleanable surface that is both aesthetically pleasing and functional.
All-in-One Solution: Combines thermal insulation and vapor protection in a single, easy-to-install product.
Production Facing of rock wool board
Aluminum foil facing
Foil-Scrim-Kraft Facing
Alum Glass Cloth Facing
FAQ:
Q1: How to guarantee the quality of the products?
A1: Our experienced QC team will inspect product's quality in every process
Q2: How to pack exported goods?
A2: Plastic bag (Standard Export Packing).
Q3: What is your lead time for one 40HCcontainer order?
A3: Usual 15-20 work days after placing order
Q4: What is your advantage on glass wool pipe?
A4: Special product with special specification can be made to order.
Q5: About the after-sale service, how to solve the problems occurred of your overseas customer in time?
A5: The warranty of our products is one year. If our products or packing exist quality problem, we will replace or compensate accordingly.
