होम > उत्पाद> थर्मल इन्सुलेशन खनिज ऊन> Sound-Reducing Multi-Layer Flexible HVAC Duct with -30 to +250°C Temperature Range and 30 m/s Air Flow Velocity

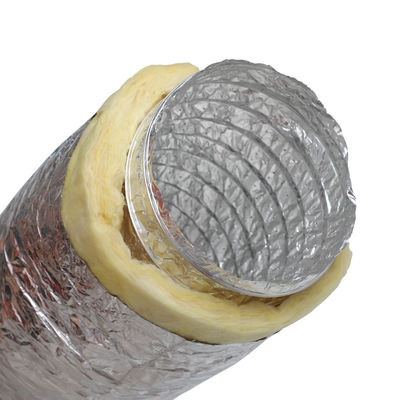

Sound-Reducing Multi-Layer Flexible HVAC Duct with -30 to +250°C Temperature Range and 30 m/s Air Flow Velocity

Sound-Reducing Multi-Layer Flexible HVAC Duct with -30 to +250°C Temperature Range and 30 m/s Air Flow Velocity
Sound-Reducing Multi-Layer Flexible HVAC Duct with -30 to +250°C Temperature Range and 30 m/s Air Flow Velocity Sound-Reducing Multi-Layer Flexible HVAC Duct with -30 to +250°C Temperature Range and 30 m/s Air Flow Velocity Sound-Reducing Multi-Layer Flexible HVAC Duct with -30 to +250°C Temperature Range and 30 m/s Air Flow Velocity Sound-Reducing Multi-Layer Flexible HVAC Duct with -30 to +250°C Temperature Range and 30 m/s Air Flow Velocity Sound-Reducing Multi-Layer Flexible HVAC Duct with -30 to +250°C Temperature Range and 30 m/s Air Flow Velocity
बुनियादी जानकारी
न्यूनतम आदेश मात्रा: 500 पीसी
मूल्य: 0.1-15$
पैकेजिंग विवरण: प्लास्टिक बैग+कार्टन
प्रसव के समय: 15-20 दिन
भुगतान शर्तें: टी/टी
आपूर्ति की क्षमता: 10000 पीसी
सबसे अच्छी कीमत अब से संपर्क करें
विस्तार जानकारी
सामग्री: एल्यूमीनियम पन्नी/पालतू/ग्लास ऊन/तार जाल आवेदन: वेंटिलेशन
आकार: गोलाकार तापमान की रेंज: -30 - +250 डिग्री सेल्सियस
व्यास सीमा: 80 मिमी - 610 मिमी रंग: चाँदी
स्टैंडग्रैड लंबाई: 5-10मी वायु प्रवाह का वेग: 30 एम/एस
प्रमुखता देना:

sound-reducing HVAC duct

,

acoustic insulated air ducting

,

flexible HVAC duct insulation

उत्पाद विवरण

Sound-Reducing Insulation Flexible HVAC Duct
Factory direct acoustic insulated flexible air ducting hose for HVAC systems parts
Product Overview
Factory air conditioning air duct HVAC system insulated duct designed for optimal performance in heating, ventilation, and air conditioning applications.

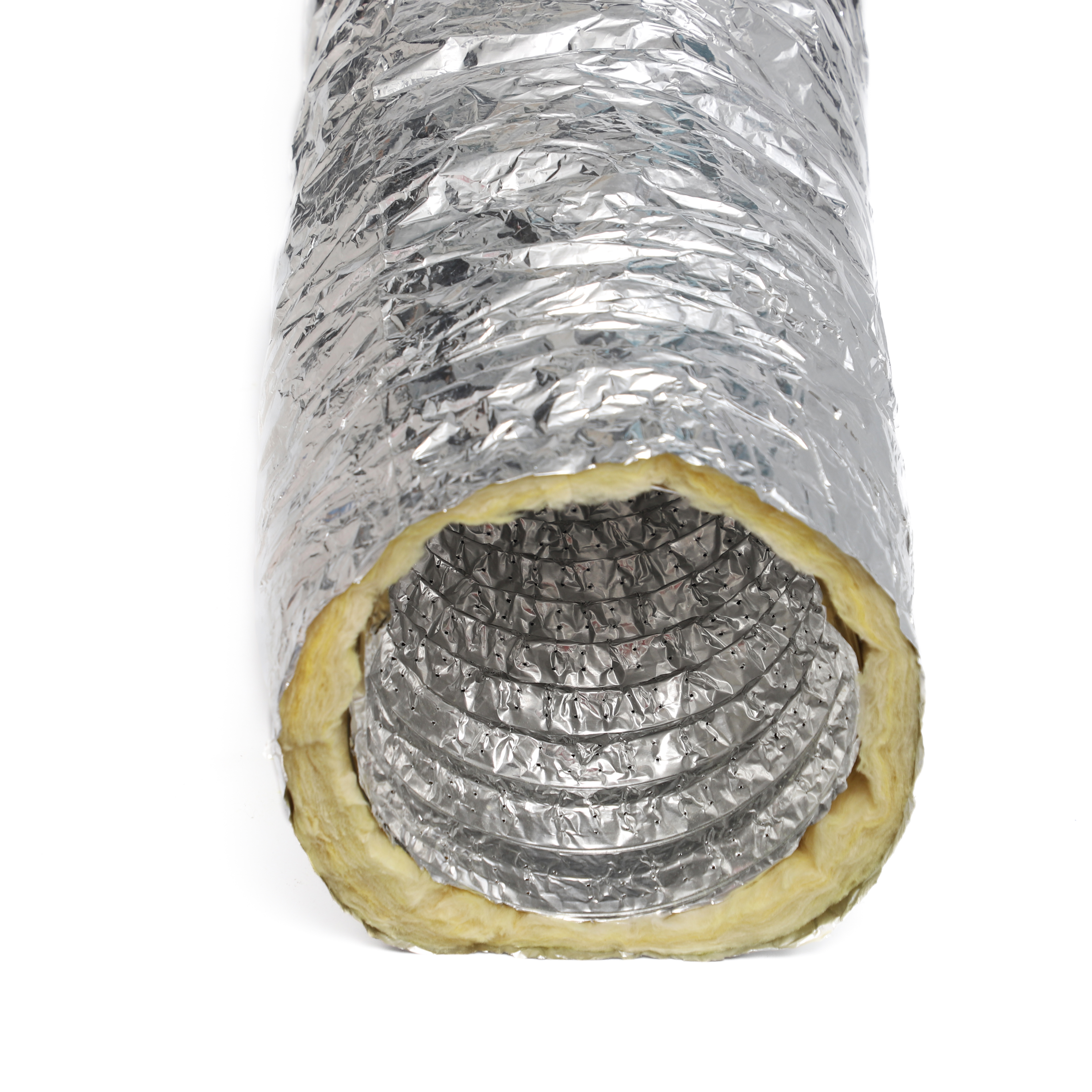

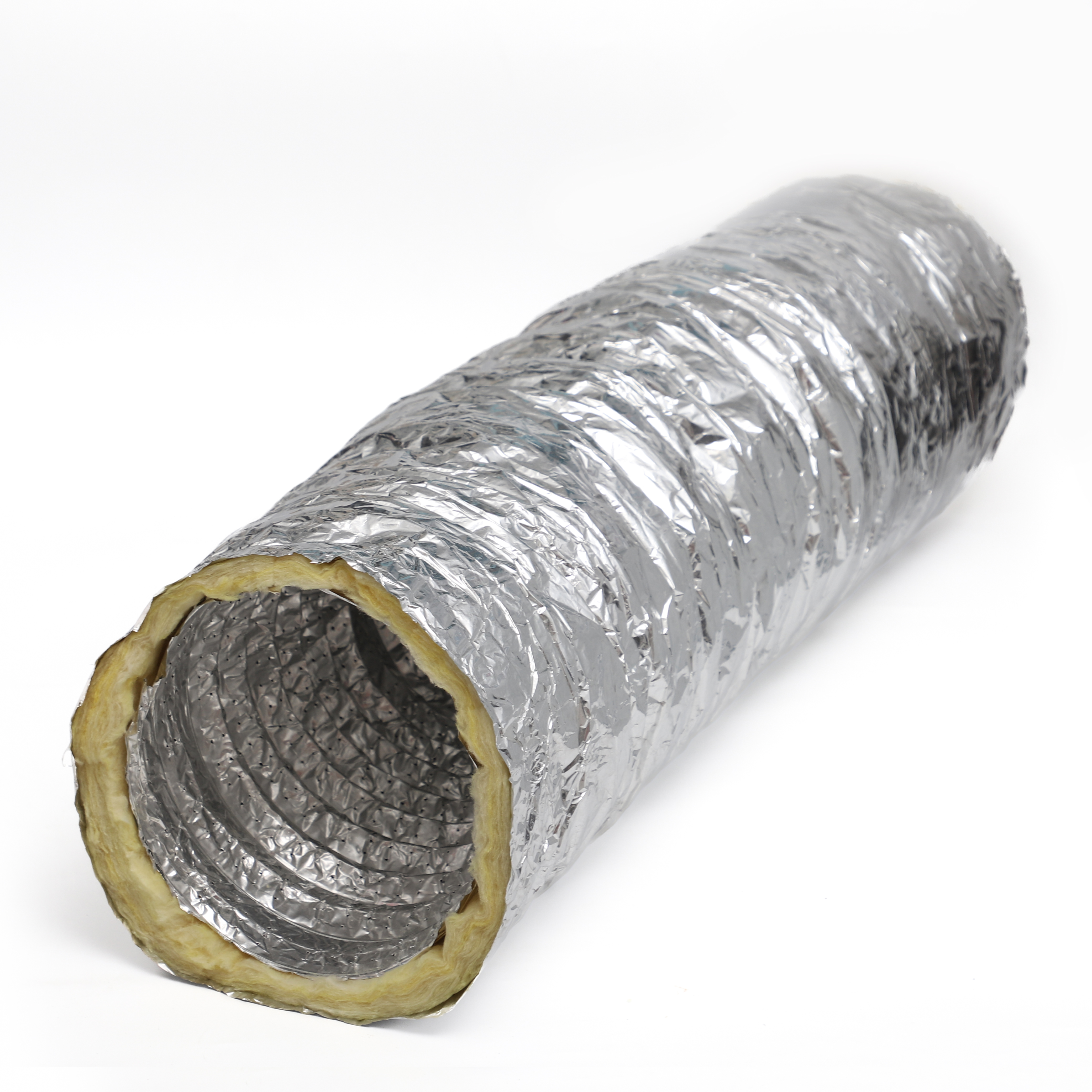

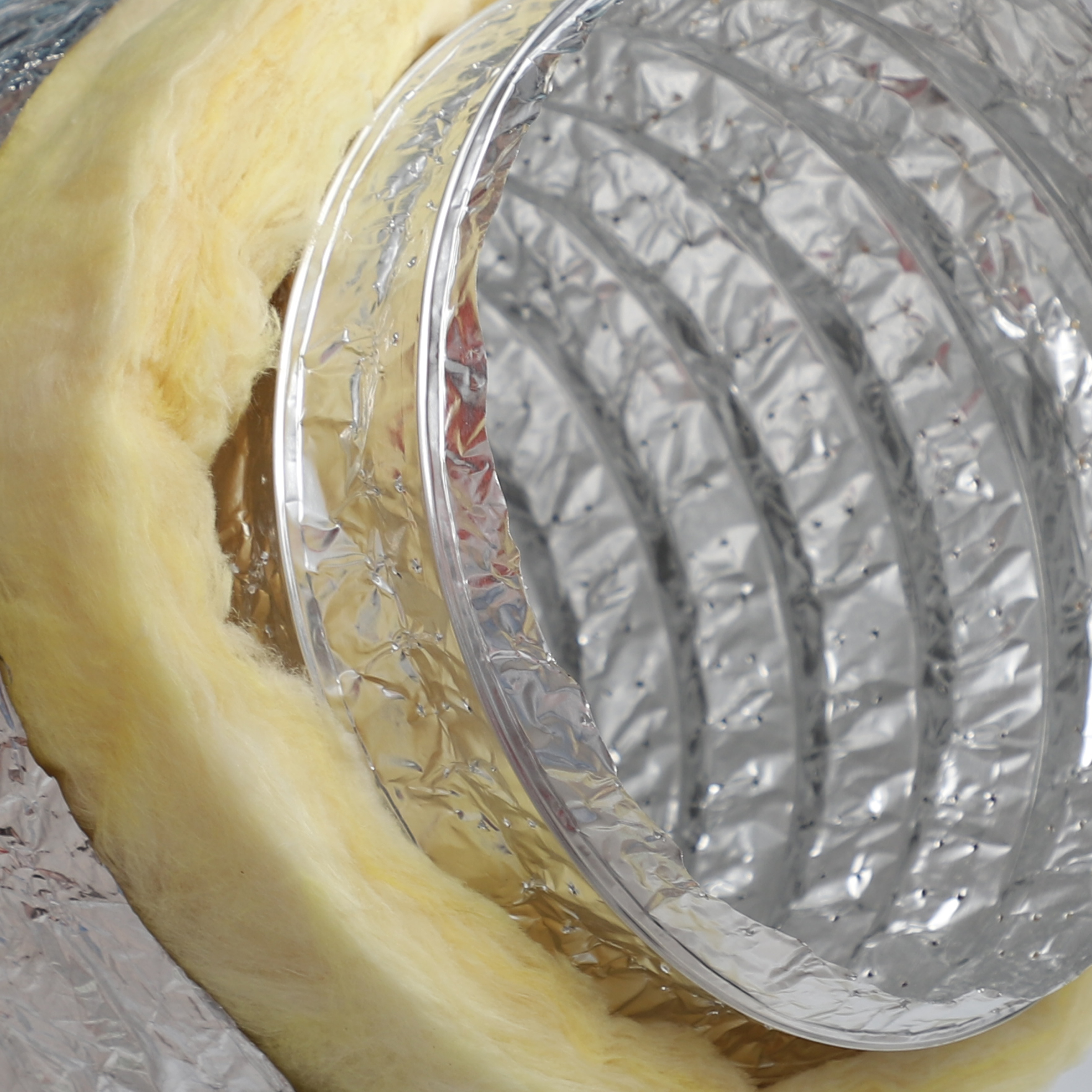

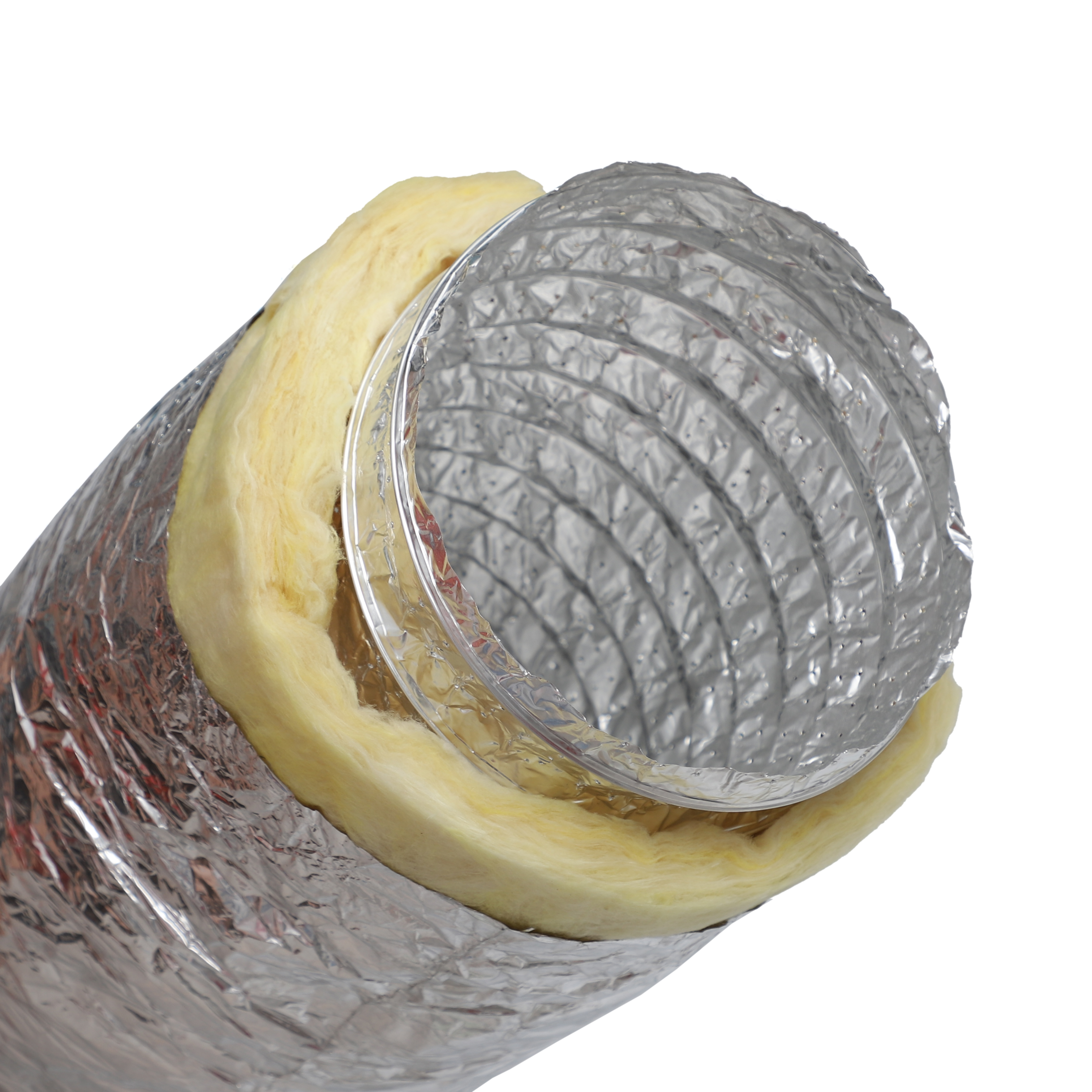

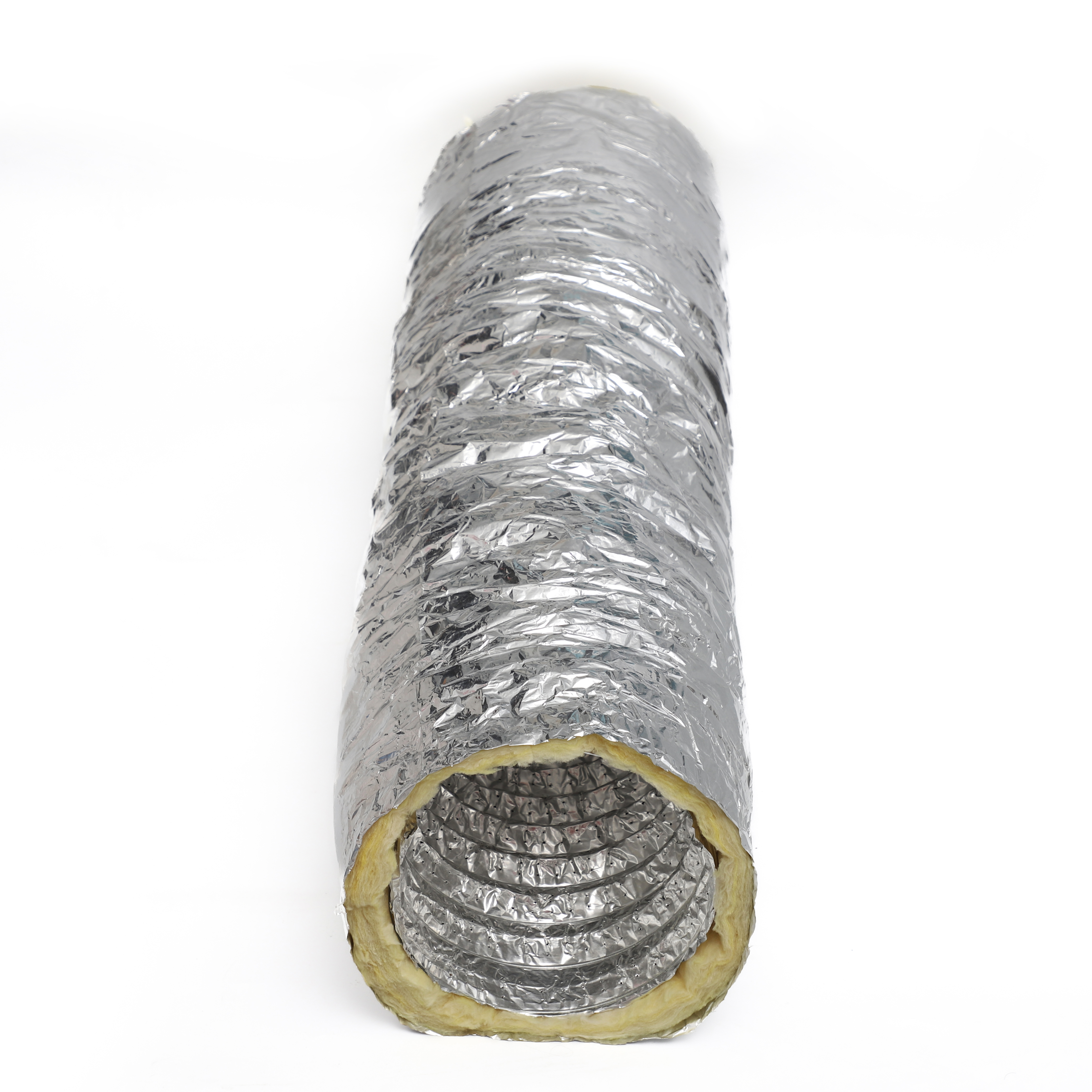

HVAC flexible duct cross-section diagram showing multi-layer construction Close-up view of flexible HVAC duct material and construction
Technical Specifications
Property Value
Diameter Range 80 ~ 610mm (3"~ 24")
Temperature Range -30 ~ +250 °C
Velocity of Air Flow (Max.) 30 m/s
Working Pressure 2500 Pa/3000 Pa
Bending Radius 0.54*D+25mm
Thickness of Fiberglass Insulation 25-50mm
Density of Fiberglass Insulation 16~32kg/m3
Standard Length 5 ~ 10m
Flexible HVAC duct installation example HVAC duct connection detail Flexible duct bending demonstration Duct insulation material close-up HVAC system ductwork application Duct manufacturing quality control Technical diagram of duct specifications
Key Features
  • Multi-Layer Construction: Composed of a slightly perforated inner core, encapsulated by fiberglass insulation, and finished with a durable aluminum/polyester laminated outer jacket.
  • Superior Performance: Combines excellent fire resistance and acoustic damping with outstanding thermal insulation and high flexibility.
  • Efficiency & Protection: Effectively minimizes heat and cool loss while preventing condensation formation within HVAC systems.
Packaging
HVAC duct packaging diagram Packaged flexible ducts ready for shipment
If you are interested in our products, please click here to see all the products.
Quality inspection of flexible ducts Manufacturing facility overview Final product quality check
Frequently Asked Questions
Can you serve free samples and how can I get them?
Yes, as one of the largest ventilation duct products manufacturers in China, we are able to offer free samples for your testing.
Can this be used for a range hood exhaust?
Suitable for use with heating, ventilation and air conditioning systems.
Can the duct be cut to length as needed?
Yes, the duct can be customized to your required length specifications.
Where can the duct be used for?
Ideal for heating and A/C systems and various ventilation applications.
What are the benefits of your flexible ducts?
Made of high quality aluminum which is flame retardant, they offer flexibility and easy installation.
Are you a manufacturer?
Yes, we are a professional manufacturer with several years of manufacturing and overseas sales experience, cooperating with distributors worldwide.
