| न्यूनतम आदेश मात्रा: | 500 पीसी |
|---|---|
| मूल्य: | 0.1-15$ |
| पैकेजिंग विवरण: | प्लास्टिक बैग+कार्टन |
| प्रसव के समय: | 15-20 दिन |
| भुगतान शर्तें: | टी/टी |
| आपूर्ति की क्षमता: | 10000 पीसी |
| सामग्री: | एल्यूमीनियम पन्नी/पालतू/ग्लास ऊन/तार जाल | आवेदन: | वेंटिलेशन |
|---|---|---|---|
| आकार: | गोलाकार | तापमान की रेंज: | -30 - +250 डिग्री सेल्सियस |
| व्यास सीमा: | 80 मिमी - 610 मिमी | रंग: | चाँदी |
| स्टैंडग्रैड लंबाई: | 5-10M | वायु प्रवाह का वेग: | 30 एम/एस |
| प्रमुखता देना: | sound-reducing HVAC duct,acoustic insulated air ducting,flexible HVAC duct insulation |
||
Factory Air conditioning air duct HAVC system insulated duct
|
PROPERTIES |
VALUE |
|
DIAMETER RANGE |
80 ~ 610mm (3"~ 24") |
|
TEMPERATURE RANGE |
-30 ~ +250 °C |
|
VELOCITY OF AIR FLOW (MAX.) |
30 m/s |
|
WORKING PRESSURE |
2500 Pa/3000 Pa |
|
BENDING RADIUS |
0.54*D+25mm |
|
THICKNESS OF FIBERGLASS INSULATION |
25-50mm |
|
DENSITY OF FIBERGLASS INSULATION |
16~32kg/m3 |
|
STANDARD LENGTH |
5 ~ 10m |
Features:

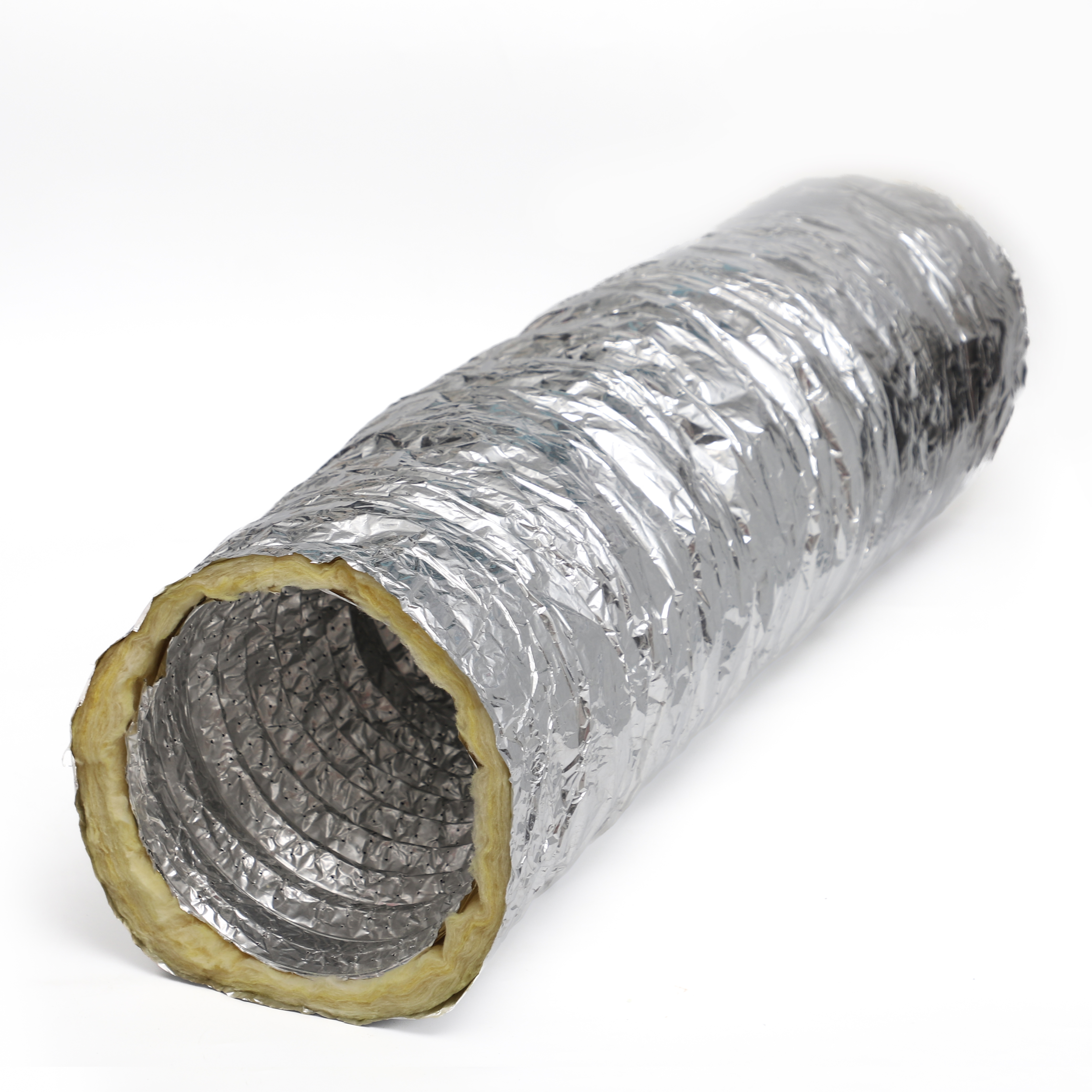

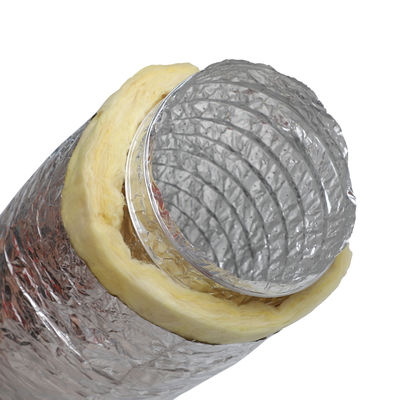

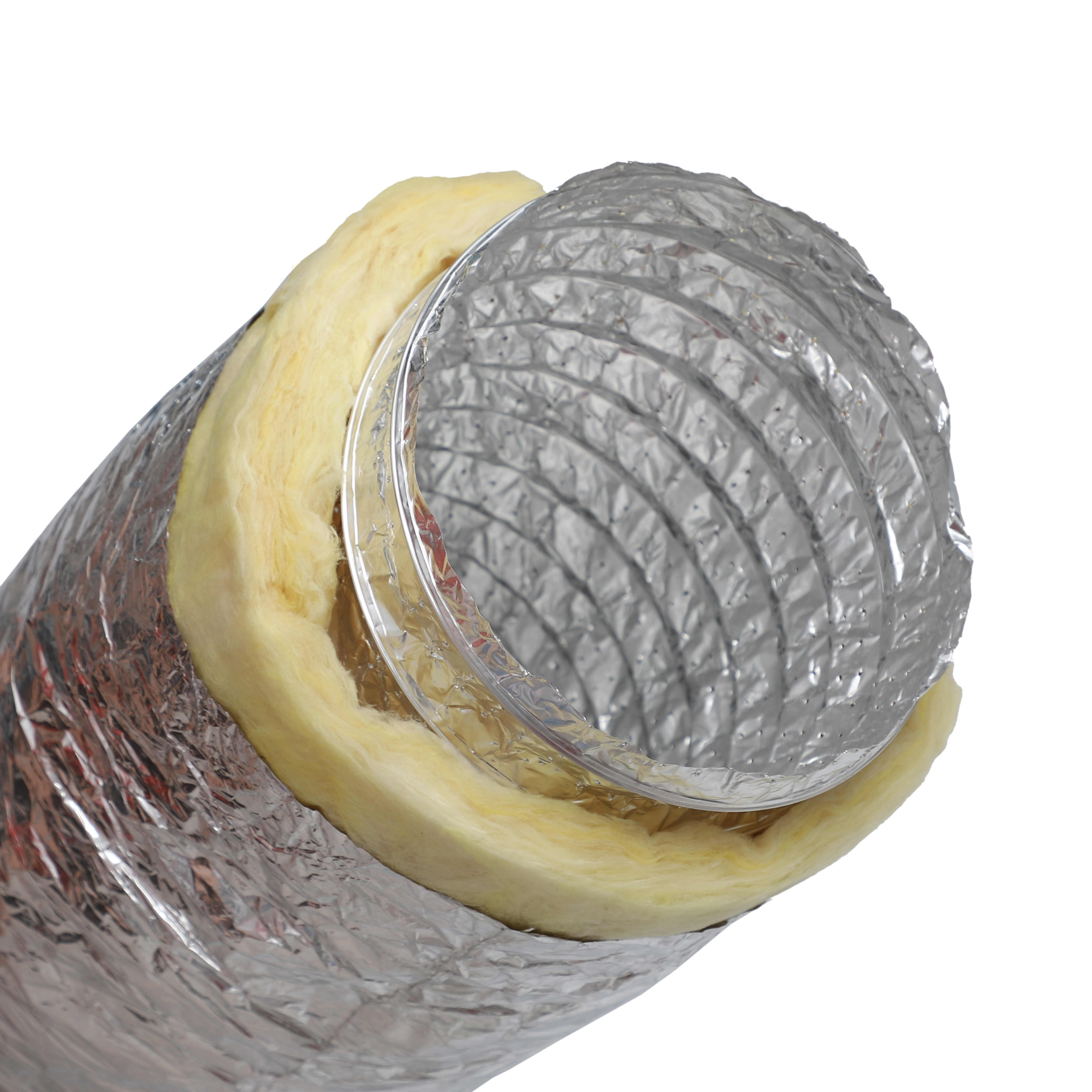

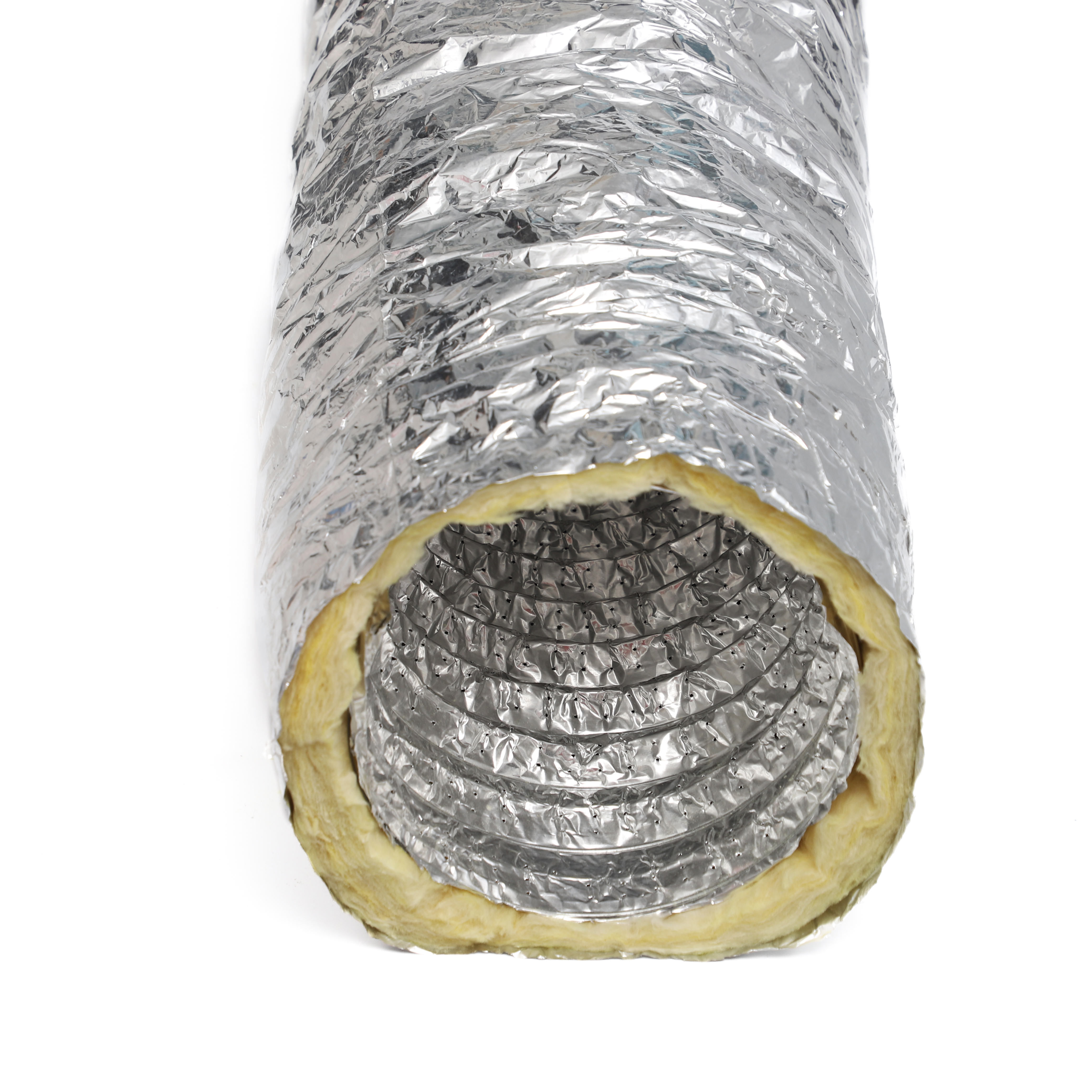

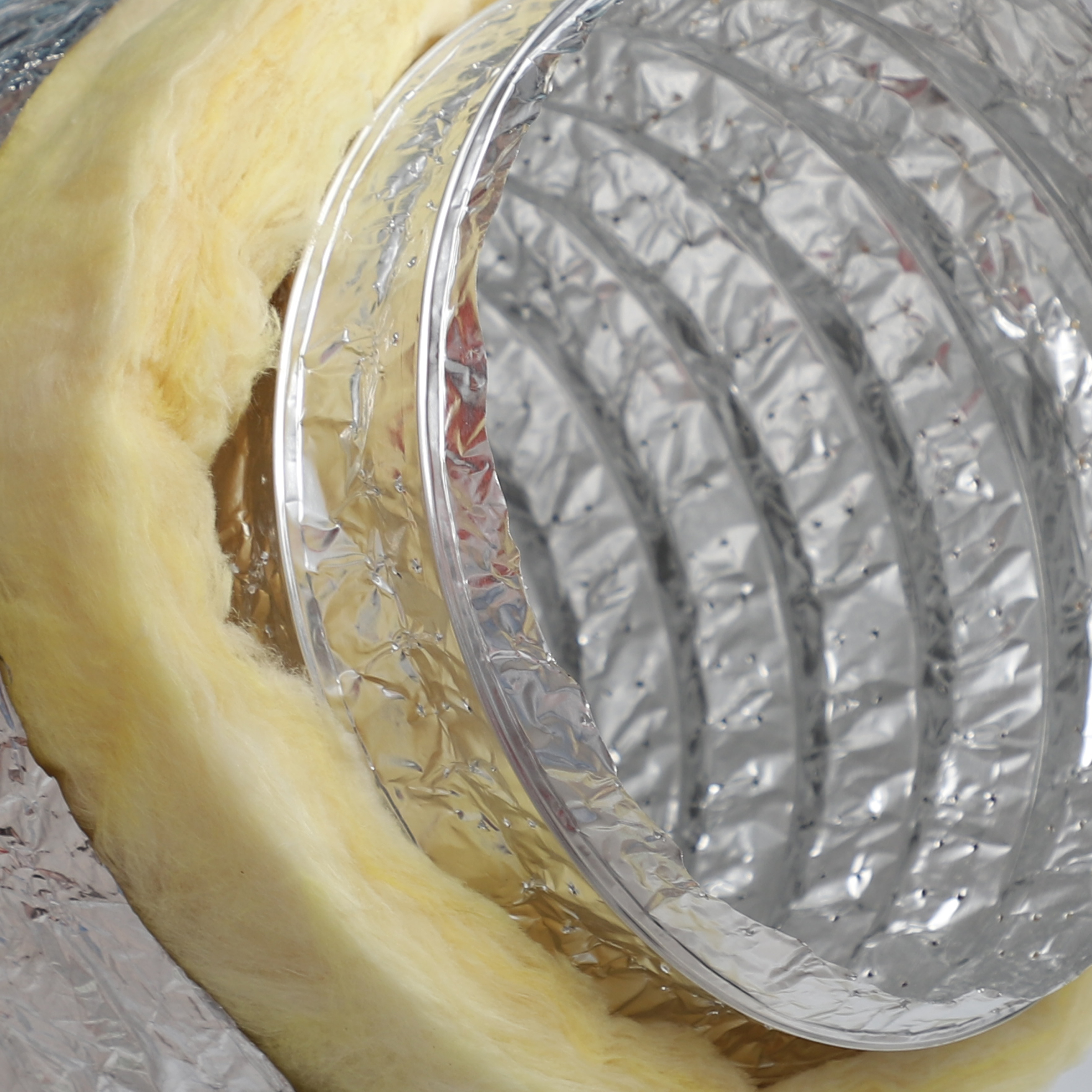

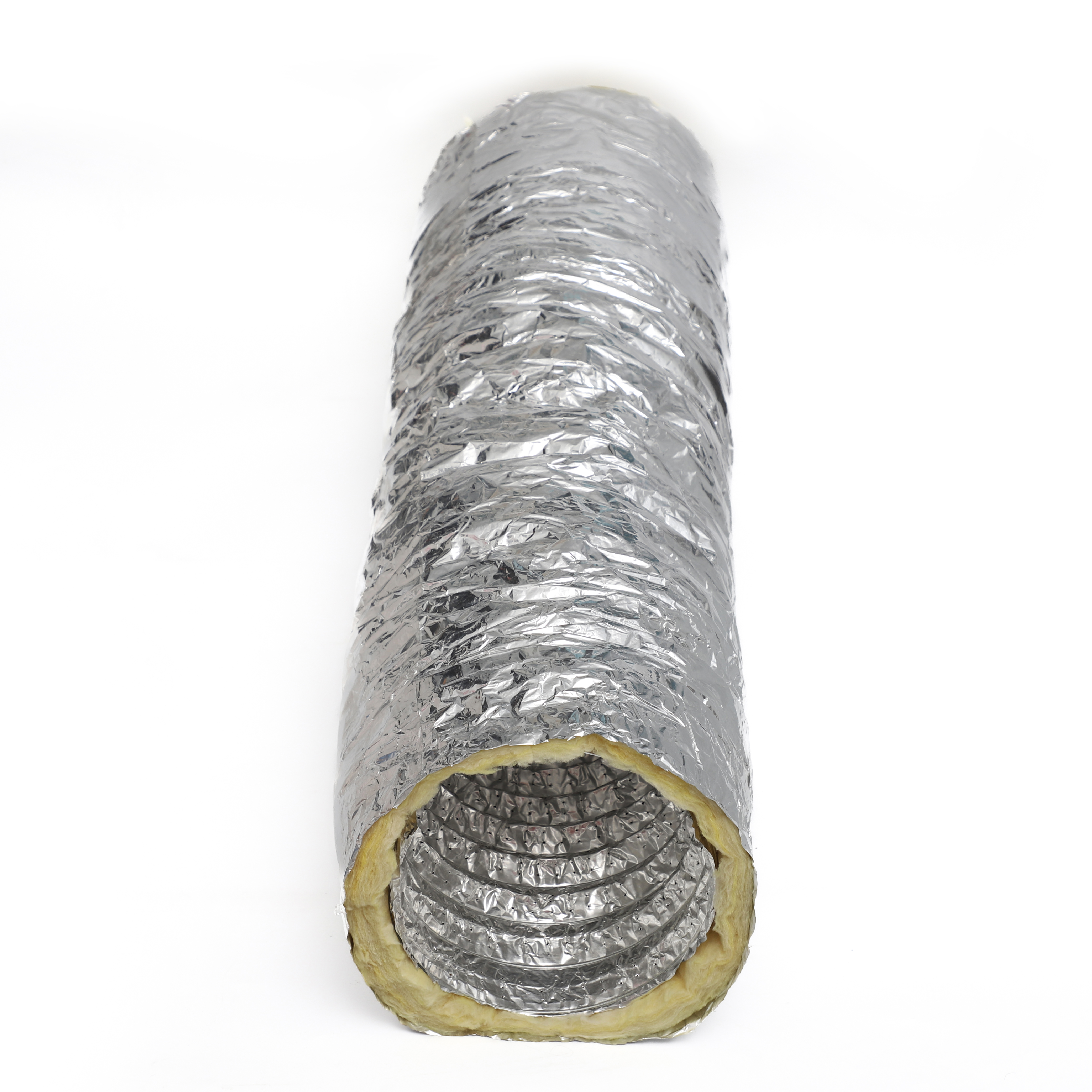

Multi-Layer Construction: Composed of a slightly perforated inner core, encapsulated by fiberglass insulation, and finished with a durable aluminum/polyester laminated outer jacket.
Superior Performance: Combines excellent fire resistance and acoustic damping with outstanding thermal insulation and high flexibility.
Efficiency & Protection: Effectively minimizes heat and cool loss while preventing condensation formation within HVAC systems.
Packing:
If you are interested in our products, please { click here } to see all the products
Q: Can you serve free samples and how can I get them?
A: Yes, as one of the largest ventilation duct products manufacturers in China, we are able to offer free samples for your test
Q: Can this be used for a range hood exhaust?"
A: Suitable for use with heating, ventilation and air conditioning systems.
Q: Can the duct be cut to length as needed?
A: Yes, sure.
Q: Where can the duct be used for?
A: Including heating and A/C systems and some venting.
Q: What are the benefits of your flexible ducts?
A: Made of high quality aluminum which is flame retardant, they are flexible and easy installation.
Q: Are you a manufacturer?
A: Yes, we are a professional manufacturer, and we cooperation with distributors at home and abroad, we have several years manufacturing and overseas sales experience.
