| उत्पत्ति के प्लेस: | चीन |
|---|---|
| ब्रांड नाम: | fanryn |
| प्रमाणन: | ASTM E84 |
| मॉडल संख्या: | ग्लासवूल बोर्ड |
| न्यूनतम आदेश मात्रा: | 1*40HQ |
| मूल्य: | 0.1-5$ |
| पैकेजिंग विवरण: | प्लास्टिक बैग |
| प्रसव के समय: | 7-10 दिन |
| भुगतान शर्तें: | टी/टी |
| आपूर्ति की क्षमता: | 10000 वर्ग मीटर |
| रासायनिक प्रतिरोध: | अधिकांश रसायनों के लिए प्रतिरोधी | सामग्री: | खनिज ऊन |
|---|---|---|---|
| घनत्व: | 24-96 किग्रा/एम 3 | ऊष्मीय चालकता: | 0.031-0.042 डब्ल्यू/एमके |
| ध्वनि अवशोषण: | उच्च | नमी प्रतिरोध: | पानी से बचाने वाला |
| आग प्रतिरोध: | गैर दहनशील | पर्यावरणीय प्रभाव: | पर्यावरण-हितैषी |
| आवेदन: | निर्माण इन्सुलेशन | प्रकार: | थर्मल इन्सुलेशन |
| सहनशीलता: | जादा देर तक टिके | इंस्टॉलेशन तरीका: | स्थापित करना आसान है |
| लागत: | खरीदने की सामर्थ्य | ||
| प्रमुखता देना: | fireproof HVAC acoustic glasswool board,Class A1 high-temperature insulation board,water-resistant mineral wool insulation board |
||

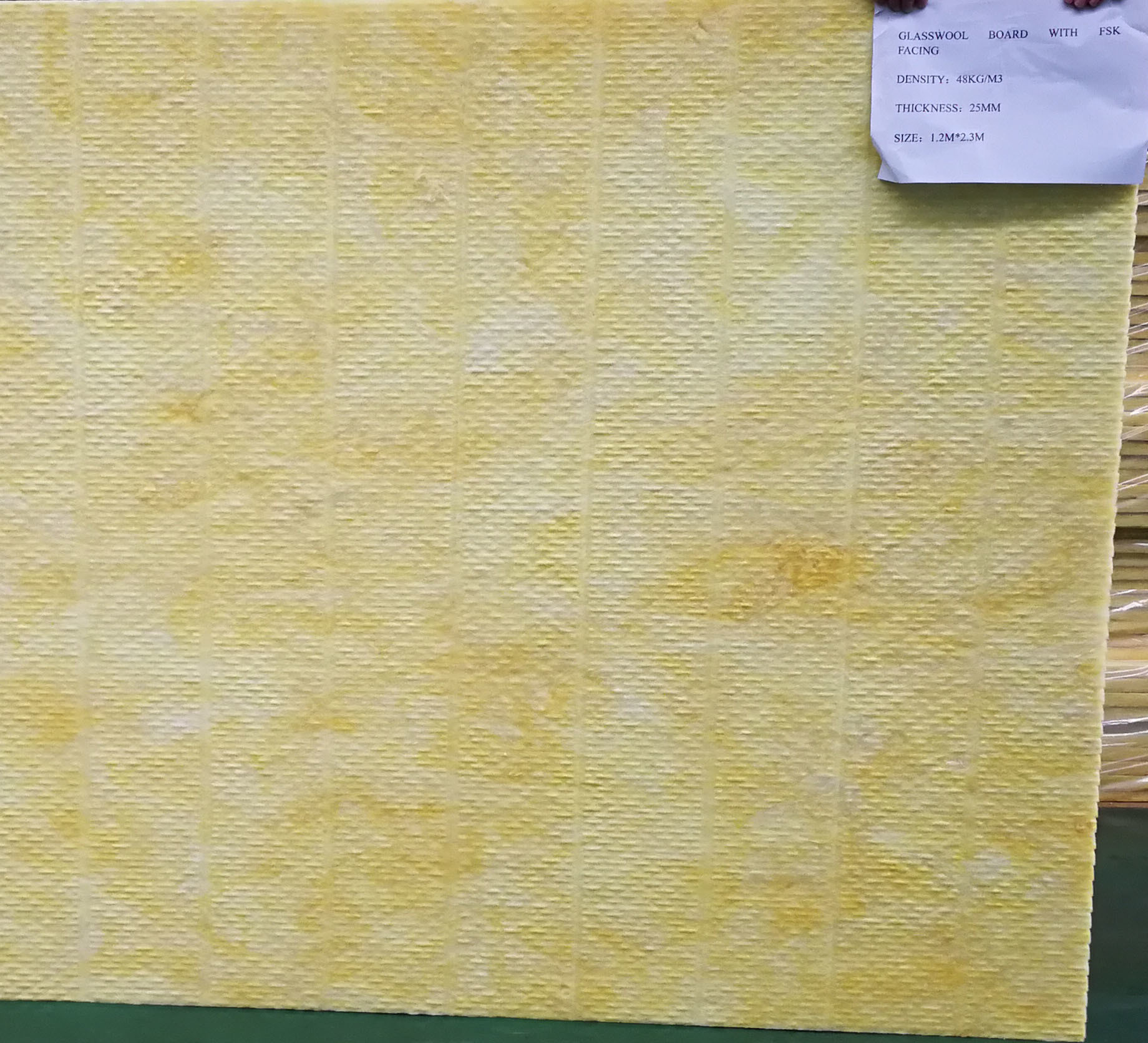

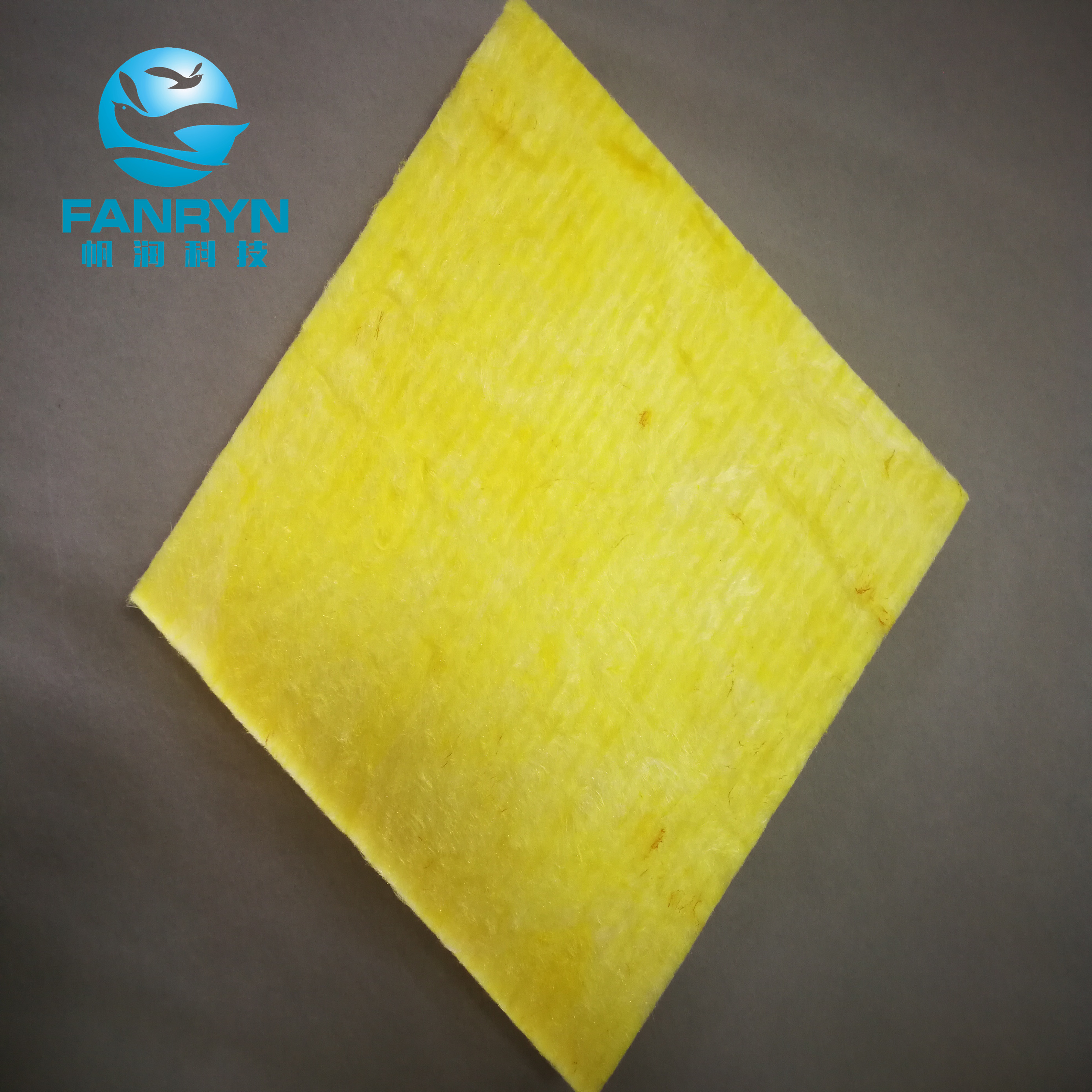

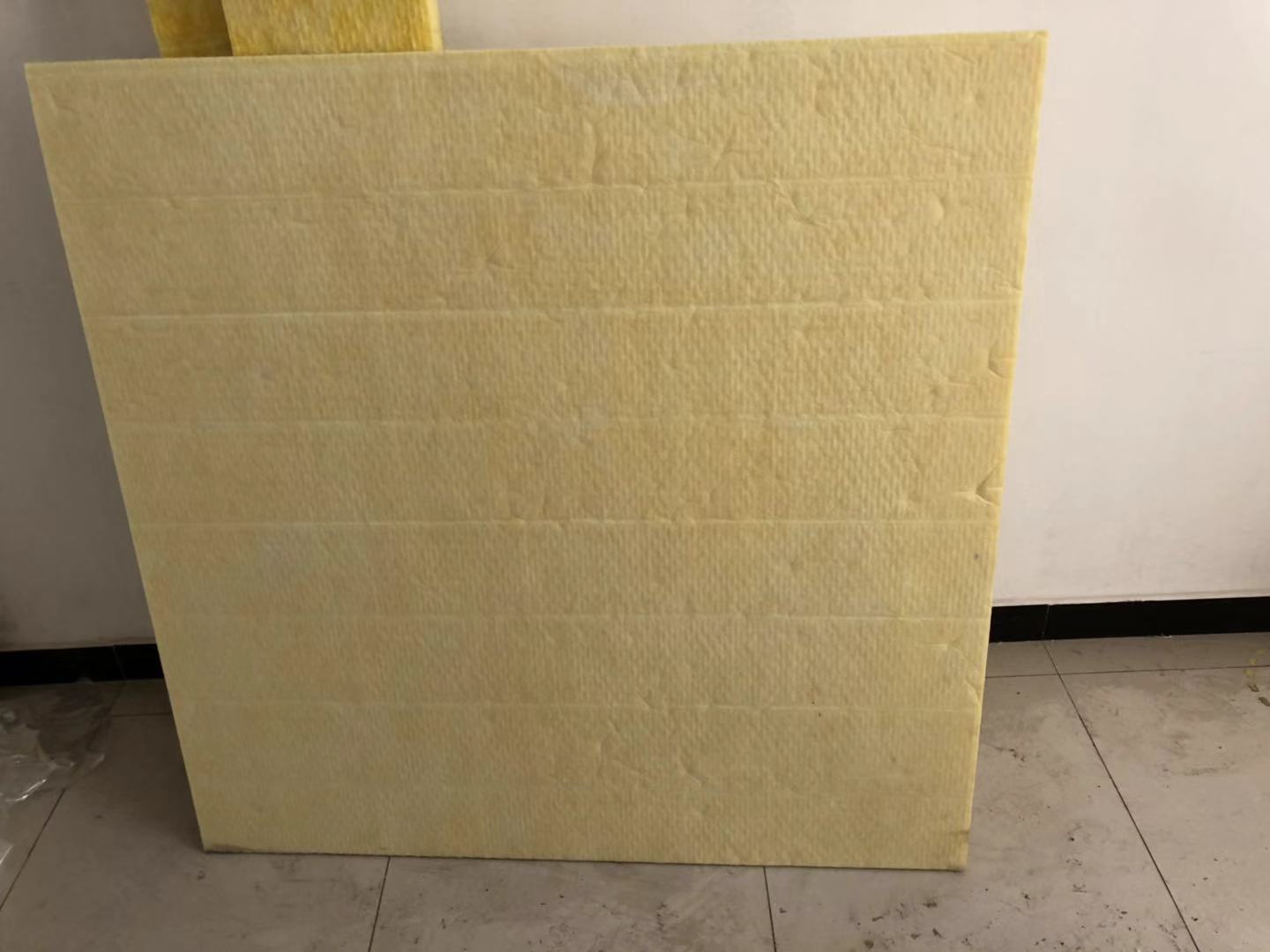

Product Introduction Of The Bare Glass Wool Board Insulation
FANRYN Centrifugal Glass Wool Board is a rigid, hot-formed panel known for its consistent strength and dimensional stability. It delivers excellent thermal insulation performance across a wide temperature range, making it suitable for both high- and low-temperature applications. Commonly used in high-spec construction and industrial settings, it is ideal for partition walls, suspended ceilings, duct and equipment insulation, and noise reduction in mechanical rooms. It also performs effectively as a moisture barrier when installed behind metal ceiling panels. High-density laminated versions are specifically engineered for HVAC duct insulation systems.
Product Parameter Of The Glass Wool Board Insulation
|
Technical Data |
|||
|
Item |
Unit |
Index |
Standard |
|
Density |
kg/m3 |
24-96 |
GB/T 5480.3 |
|
Average fiber dia |
μm |
5.5 |
GB/T 5480.4-1985 |
|
Water content |
% |
≤ 1 |
GB/T 3007-1982 |
|
Grade of combustibility |
|
Non-combustible Grade A |
GB 8624-1997 |
|
Preshrinking temp |
℃ |
≥250 |
GB/T 11835-1998 |
|
Thermal conductibility |
w/m·k |
0.031-0.042 |
GB/T 10294-1988 |
|
Hydrophobicity |
% |
≥ 98.2 |
GB/T 10299-1988 |
|
Moisture rate |
% |
≤ 5 |
GB/T 16401-1986 |
|
Sound absorption coefficient |
|
1.03 product reverberation method 24kg/m3 2000HZ |
GBJ 47-83 |
|
Slag inclusion content |
% |
≤ 0.3 |
|
Product Size Of The Glass Wool Board Insulation
|
Density(kg/m3) |
Thickness(m) |
Length (m) |
Width (m) |
Pcs/packing |
|
24-96 |
0.025-0.1 |
0.6-1.25 |
0.6 |
5-18 |
|
24-96 |
0.025-0.1 |
0.6-2.4 |
1.1-1.25 |
5-18 |
Product Feature And Application Of The Glass Wool Board Insulation
1.Wall Insulation
Suitable for exterior and interior wall applications, it ensures stable indoor temperature control, significantly reduces energy consumption, and improves a building’s ability to adapt to changing climatic conditions.
2.Steel Structure Insulation
Designed for industrial facilities, warehouses, and large-span steel structures, it provides efficient thermal insulation while enhancing energy savings and fire safety performance.
3.Indoor Partition Walls
Serves as a lightweight interior partition filler that combines thermal and sound insulation, helping to maximize usable space and ensure occupant privacy.
4.Railway Vehicle Insulation
Offers integrated thermal and acoustic management in railway carriages, enhancing travel comfort and meeting stringent material standards for the transportation industry.
5.Sound Absorption & Noise Isolation
Effectively minimizes noise transfer in commercial, industrial, and residential settings through absorption and isolation techniques—ideal for theaters, studios, and mechanical rooms

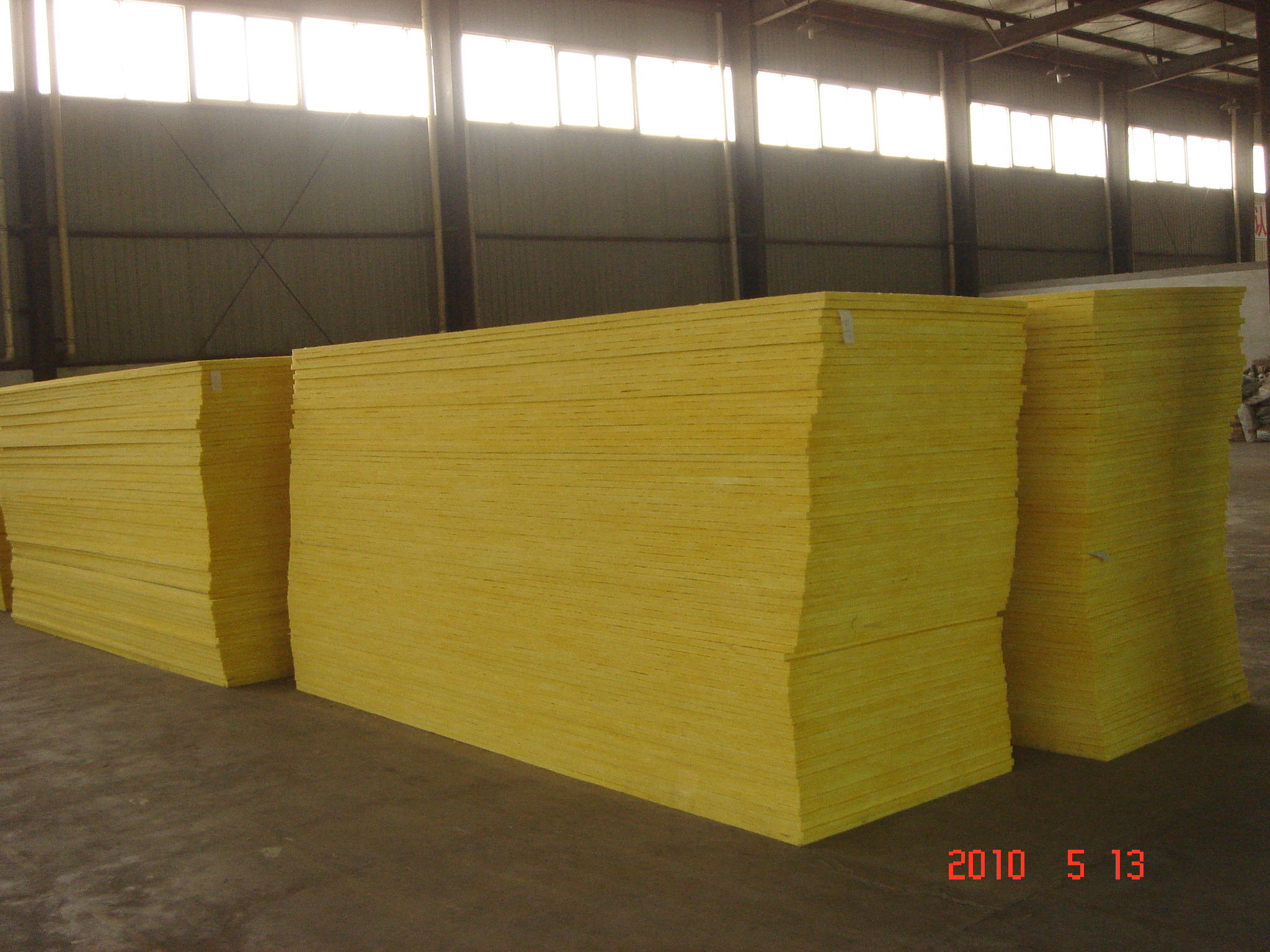

Production Details Of The Glass Wool Board Insulation
Product Packing Of The Glass Wool Board Insulation
The normal packing is plastic bag
OEM is acceptable
Production Facing Of The Glass Wool Board Insulation
1.Foil-Scrim-Kraft Facing
2.Alum Glass Cloth Facing
3.Fiberglass Tissue
FAQ:
Q1: How to guarantee the quality of the products?
A1: Our experienced QC team will inspect product's quality in every process
Q2: How to pack exported goods?
A2: Plastic bag (Standard Export Packing).
Q3: what is your lead time for one 40HC container order?
A3: Usual 7-10 work days after placing order
Q4: What is your advantage on glass wool board?
A4: Special size can be made according customer’s requirement.
Q5: About the after-sale service, how to solve the problems occurred of your overseas customer in time?
A5: The warranty of our products is one year. If our products or packing exist quality problem, we will replace or compensate accordingly.
Our service
-One year warranty for all products
-Necessary technical support
-Delivery quality products with excellent service on time
-Supply one stop solution on insulation and ventilation products
-Supply high level QC service
