| उत्पत्ति के प्लेस: | चीन |
|---|---|
| ब्रांड नाम: | fanryn |
| प्रमाणन: | EN 13501 |
| मॉडल संख्या: | रॉकवूल पाइप |
| न्यूनतम आदेश मात्रा: | 1*40HQ |
| मूल्य: | 0.1-6$ |
| पैकेजिंग विवरण: | प्लास्टिक बैग |
| प्रसव के समय: | 7-10 दिन |
| भुगतान शर्तें: | टी/टी |
| आपूर्ति की क्षमता: | 10000 टुकड़े |
| नमी: | <= 0.5% | सामग्री: | खनिज ऊन |
|---|---|---|---|
| रासायनिक प्रतिरोध: | उच्च | मोटाई: | 25-150 मिमी |
| इन्सुलेशन प्रकार: | थर्मल | पर्यावरणीय प्रभाव: | पर्यावरण-हितैषी |
| आग दर्ज़ा: | कक्षा A1 | ध्वनि अवशोषण: | उच्च |
| फाइबर व्यास: | 7 （+/- 1) उम | शॉट सामग्री: | <= 12% |
| कार्बनिक पदार्थ सामग्री: | <= 4% | ||
| प्रमुखता देना: | preinsulated pipe rockwool insulation,mineral wool insulation for HVAC,aluminum foil faced pipe insulation |
||

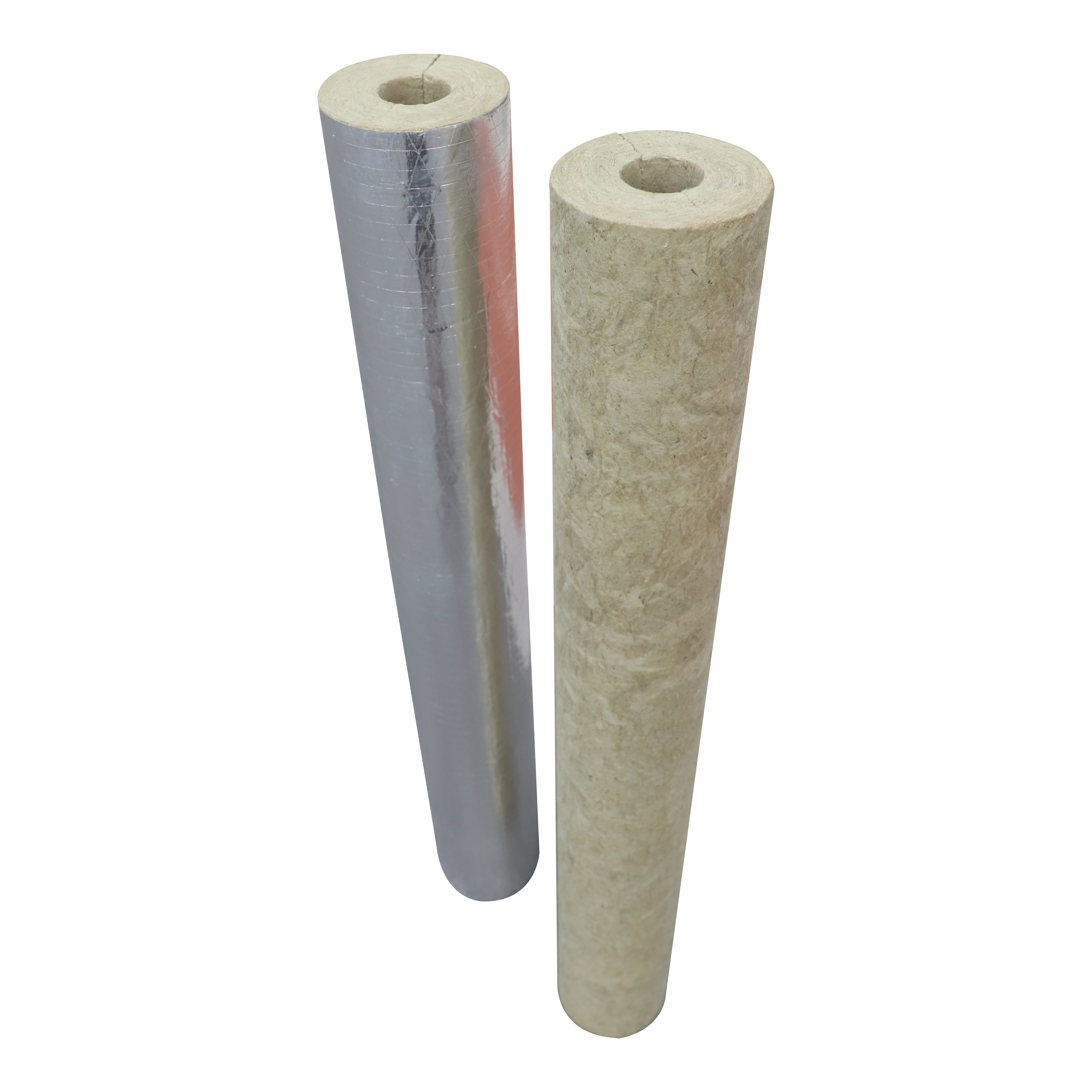

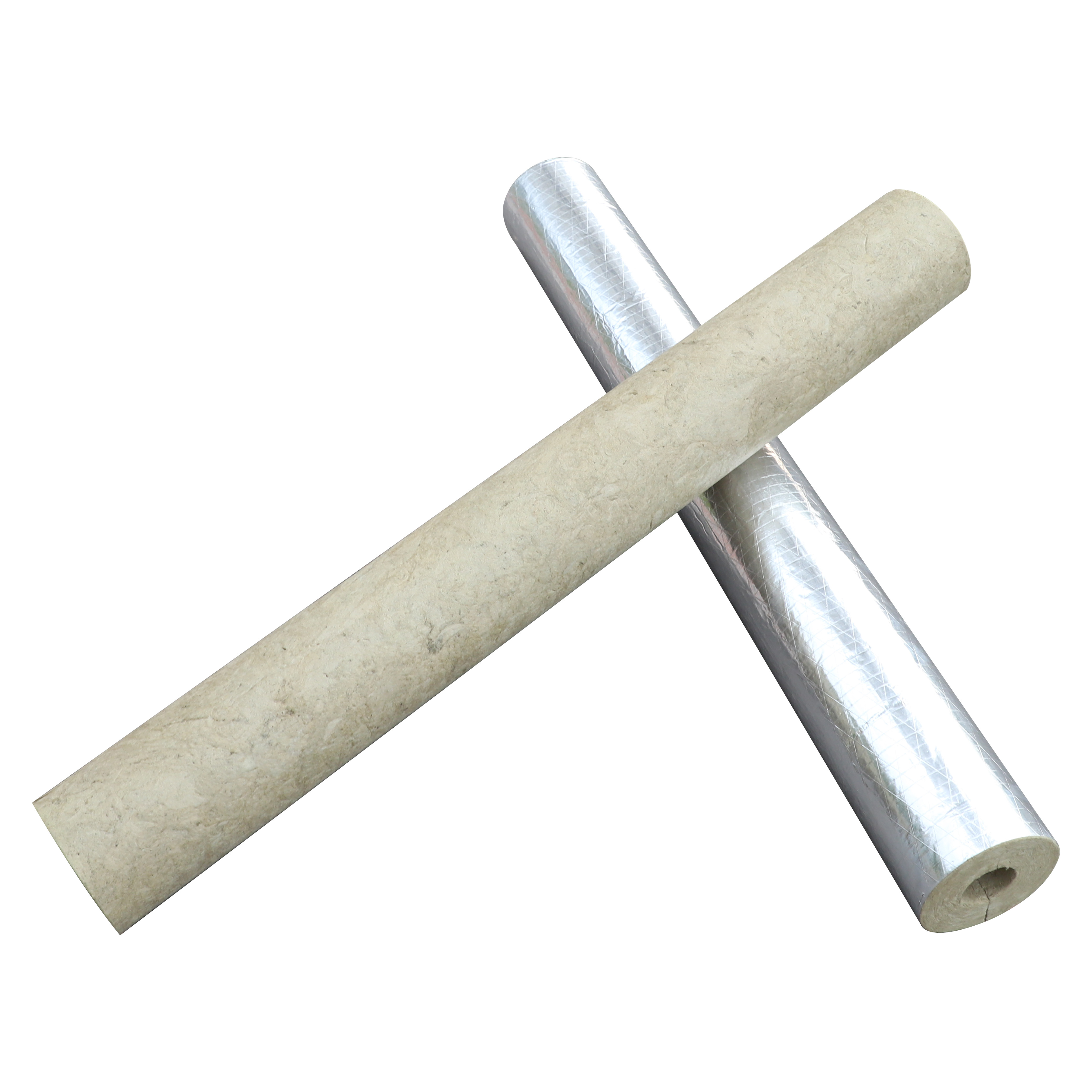

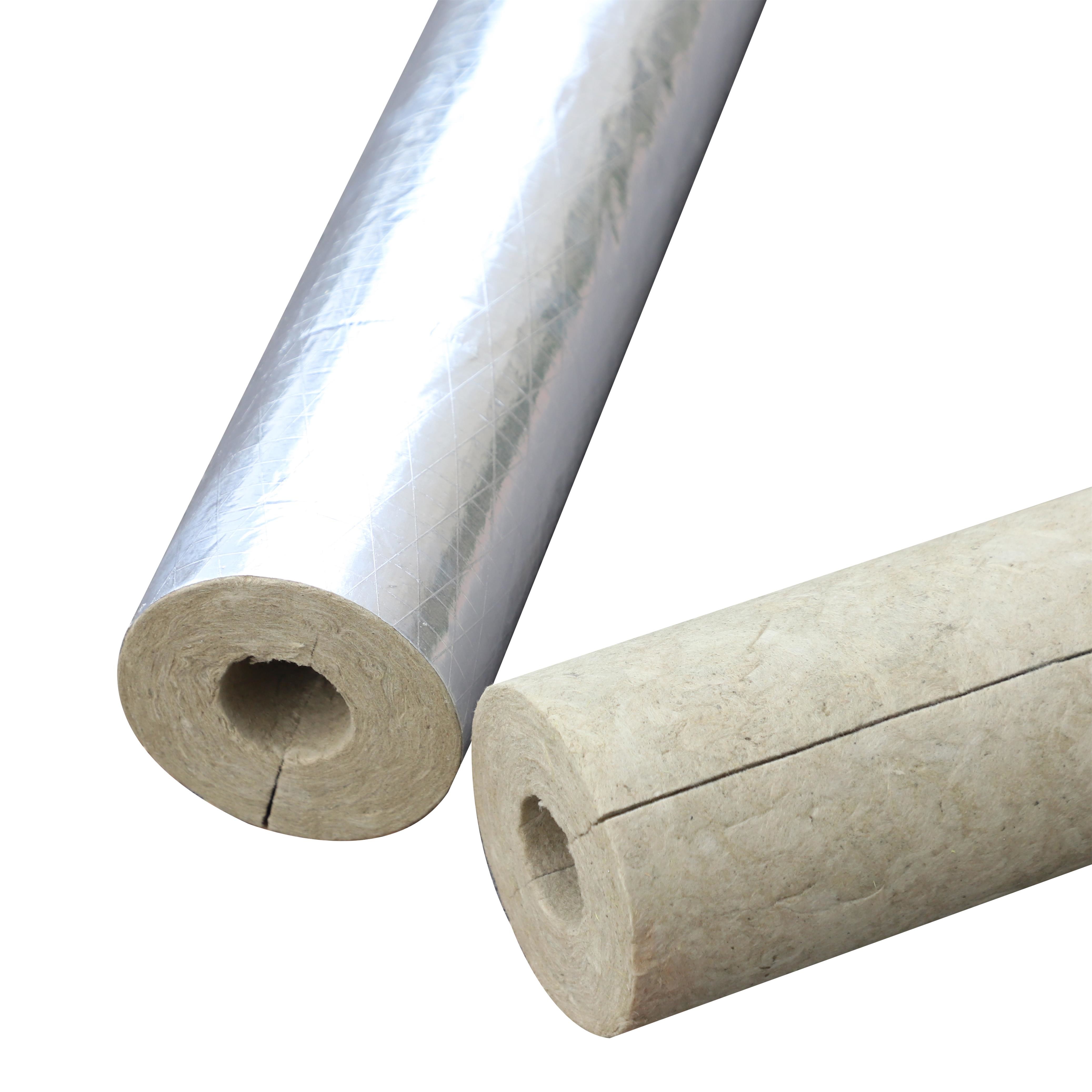

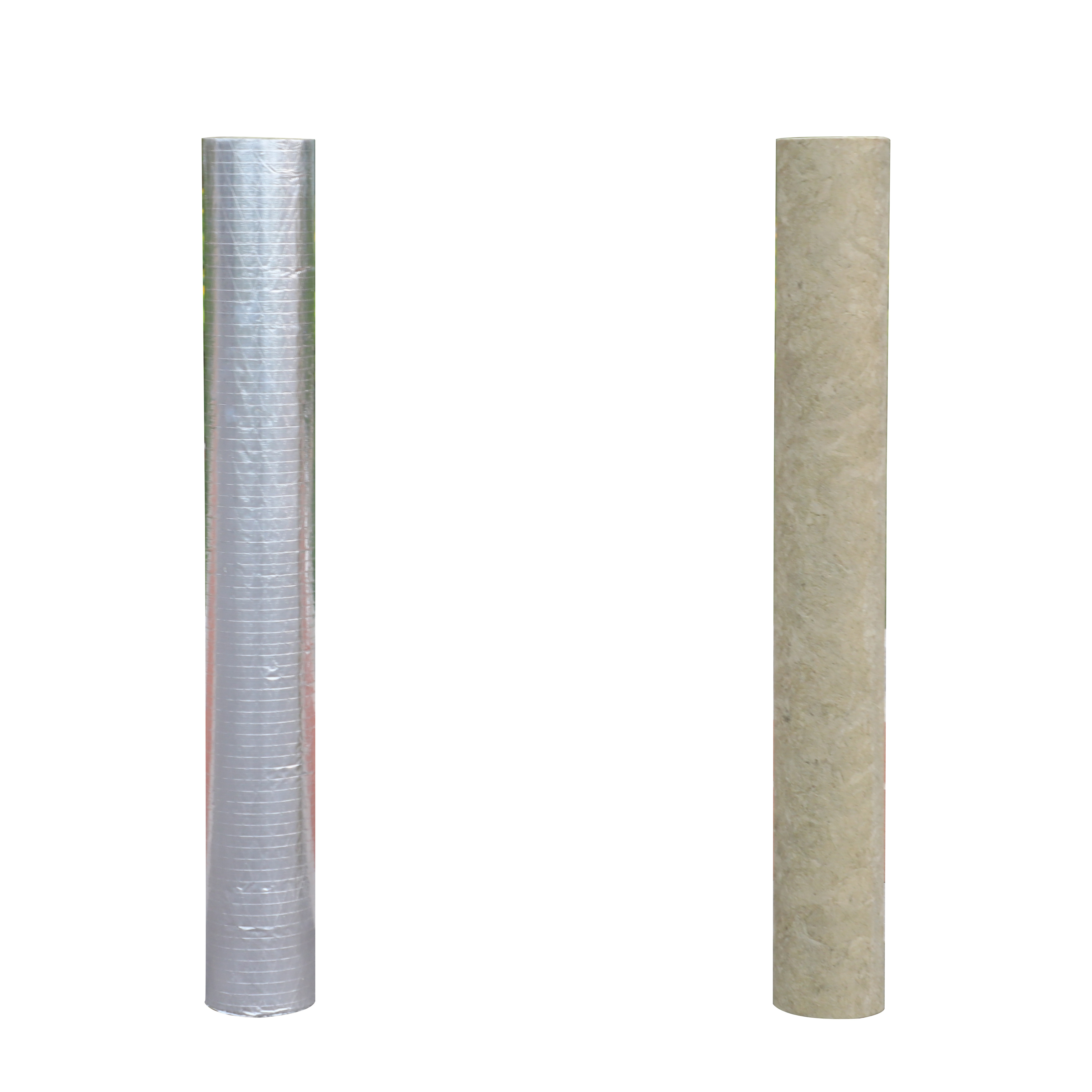

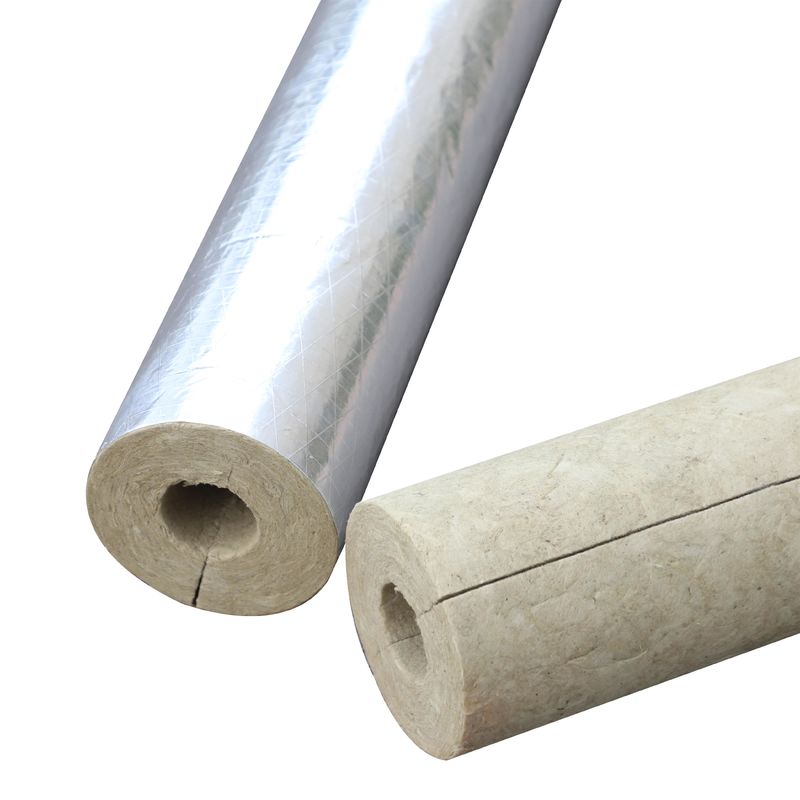

High Temperature Preinsulated Pipe Rockwool Mineral Wool Insulation With Aluminum Foil Facing for HVAC Ductwork Plumbing Pipes
Product introduction of the rock wool pipe with aluminum foil facing
FANRYN Rock wool pipe is made from natural rocks such as basalt and limestone. The rocks are melted in a cupola at temperature of >1450 ℃, and the molten lava is fiberized by a spinner. The inorganic fibers are bonded together using a thermosetting resin to form the final product which is cut into suitable sizes for easy handling and installation.
Production details of the rock wool pipe with aluminum foil facing
Product parameter of the rock wool pipe with aluminum foil facing
|
Properties |
Specifications |
Standards |
|
Density Tolerance |
±15% |
GB/T 19686-2005 |
|
Fire Performance |
Non-Combustible |
GB/T 5464-1999 |
|
Reaction to fire Class A1 |
GB/T 8624-2006 |
|
|
Thermal Conductivity (W/mK, at70±5℃) |
≤0.044 |
GB/T 10295 |
|
Fiber Diameter |
7(+/-1)um |
GB/T 5480. 4 |
|
Shot Content (shot size＞0.25mm) |
≤12% |
|
|
Eccentricity of Pipe shell |
≤5mm |
|
Product size of the rock wool pipe with aluminum foil facing
|
DIA |
Thickness (mm) |
|||||||||||
|
inch |
mm |
25 |
30 |
40 |
50 |
60 |
70 |
80 |
90 |
100 |
120 |
150 |
|
1/2’’ |
22 |
● |
● |
|
● |
|
|
|
|
|
|
|
|
3/4’’ |
27 |
● |
● |
● |
● |
● |
● |
● |
|
|
|
|
|
1’’ |
34 |
● |
● |
● |
● |
● |
● |
● |
|
|
|
|
|
1-1/4’’ |
43 |
● |
● |
● |
● |
● |
● |
● |
● |
● |
|
|
|
1-1/2’’ |
48 |
● |
● |
● |
● |
● |
● |
● |
● |
● |
|
|
|
2’’ |
60 |
● |
● |
● |
● |
● |
● |
● |
● |
● |
|
|
|
2-1/2’’ |
76 |
● |
● |
● |
● |
● |
● |
● |
● |
● |
|
|
|
3’’ |
89 |
● |
● |
● |
● |
● |
● |
● |
● |
● |
|
|
|
3-1/2’’ |
108 |
● |
● |
● |
● |
● |
● |
● |
● |
● |
|
|
|
4’’ |
114 |
● |
● |
● |
● |
● |
● |
● |
● |
● |
● |
|
|
5’’ |
140 |
|
● |
● |
● |
● |
● |
● |
● |
● |
● |
● |
|
6’’ |
169 |
|
● |
● |
● |
● |
● |
● |
● |
● |
● |
● |
|
8’’ |
219 |
|
|
● |
● |
● |
● |
● |
● |
● |
● |
● |
|
10’’ |
273 |
|
|
● |
● |
● |
● |
● |
● |
● |
● |
● |
|
12’’ |
325 |
|
|
● |
● |
● |
● |
● |
● |
● |
● |
● |
|
14’’ |
356 |
|
|
|
● |
● |
● |
● |
● |
● |
● |
● |
|
15’’ |
381 |
|
|
|
● |
● |
● |
● |
● |
● |
● |
● |
|
16’’ |
406 |
|
|
|
● |
● |
● |
● |
● |
● |
● |
● |
|
18’’ |
456 |
|
|
|
● |
● |
● |
● |
● |
● |
● |
● |
|
19’’ |
483 |
|
|
|
|
|
● |
● |
● |
● |
● |
● |
|
20’’ |
508 |
|
|
|
|
|
● |
● |
● |
● |
● |
● |
|
22’’ |
558 |
|
|
|
|
|
|
● |
● |
● |
● |
● |
|
24’’ |
610 |
|
|
|
|
|
|
● |
● |
● |
● |
● |
Product feature of the rock wool pipe with aluminum foil facing
1.Excellent Thermal Insulation
-Effectively prevents heat loss/gain and pipe freezing while significantly reducing energy consumption.
2.Superior Fire Resistance (A1 Rating)
-Withstands temperatures exceeding 1000°C, preventing fire spread through piping systems.
3.Effective Noise Reduction
-Absorbs fluid flow and equipment vibration noise, ideal for hospitals and hotels.
4.Corrosion-Resistant Material
-Chemically inert properties prevent corrosion to metal pipes.
5.Eco-Friendly Production
-Made from natural basalt and recycled slag with manufacturing waste recyclability.
6.Integrated Vapor Barrier
-Aluminum foil facing provides continuous moisture protection to maintain thermal performance.
7.Lifecycle Carbon Reduction
-Reduces over 30% carbon emissions throughout its service life.
8.Easy Installation & Maintenance
-Flexible design adapts to various pipe configurations with built-in protective facing.
Product application of the bare rock wool pipe
Insulation and fireproof of huge projects like power plant, oil depot and petrochemical works.
Production packing of the bare rock wool pipe
FAQ:
Q1: How to guarantee the quality of the products?
A1: Our experienced QC team will inspect product's quality in every process
Q2: How to pack exported goods?
A2: Plastic bag (Standard Export Packing).
Q3: what is your lead time for one 40HC container order?
A3: Usual 7-10 work days after placing order.
Q4: What is your advantage on rock wool pipe?
A4: Special product with special specification can be made to order.
Q5: About the after-sale service, how to solve the problems occurred of your overseas customer in time?
A5: The warranty of our products is one year. If our products or packing exist quality problem, we will replace or compensate accordingly.
