| उत्पत्ति के प्लेस: | चीन |
|---|---|
| ब्रांड नाम: | fanryn |
| प्रमाणन: | BS476, EN13501 12018, CE |
| मॉडल संख्या: | फाइबरग्लास छत पैनल |
| न्यूनतम आदेश मात्रा: | 1*40HQ |
| मूल्य: | 0.5-3$ per square meter |
| पैकेजिंग विवरण: | गत्ते का डिब्बा या प्लास्टिक बैग |
| प्रसव के समय: | 10-15 दिन |
| भुगतान शर्तें: | टी/टी |
| आपूर्ति की क्षमता: | हम 10-15 दिनों के भीतर 1*40HQ का उत्पादन कर सकते हैं |
| ध्वनि अवशोषण गुणांक: | 0.8-0.9 | घनत्व: | 70-130 किग्रा/वर्ग मीटर |
|---|---|---|---|
| सामग्री: | ग्लास वुल | पर्यावरणीय प्रभाव: | पुन: प्रयोज्य और पर्यावरण-अनुकूल |
| मोटाई: | 15mm, 20mm, 25mm | आवेदन: | इमारतों, औद्योगिक उपकरणों के लिए थर्मल इन्सुलेशन |
| इंस्टॉलेशन तरीका: | ◆खुले ग्रिड का उपयोग करें, ग्रिड की चौड़ाई: 15 मिमी या 24 मिमी ◆टाइल्स को ट्रिम करना और स्थापित करना | आग प्रतिरोध: | गैर-दहनशील, कक्षा ए |
| ऊष्मीय चालकता: | >=0.4(m2.k/w) | जल अवशोषण: | <1% |
Products Description

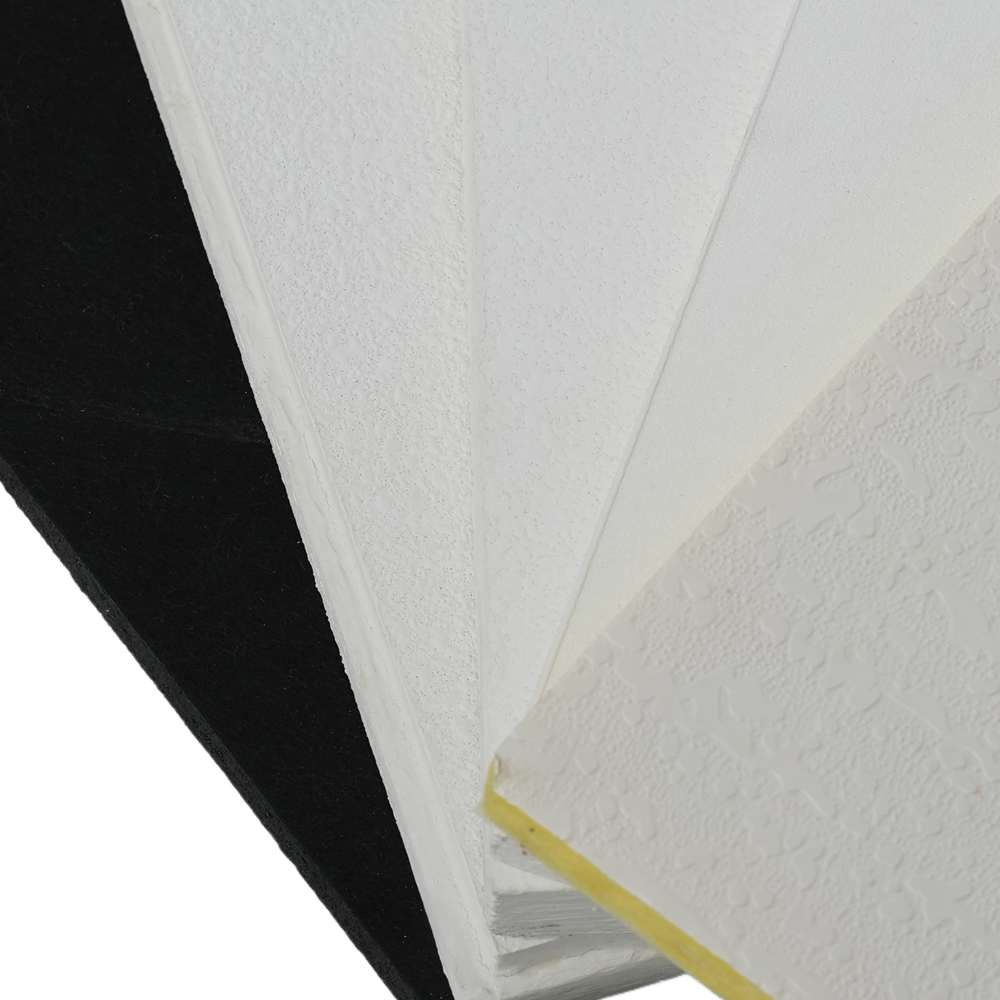

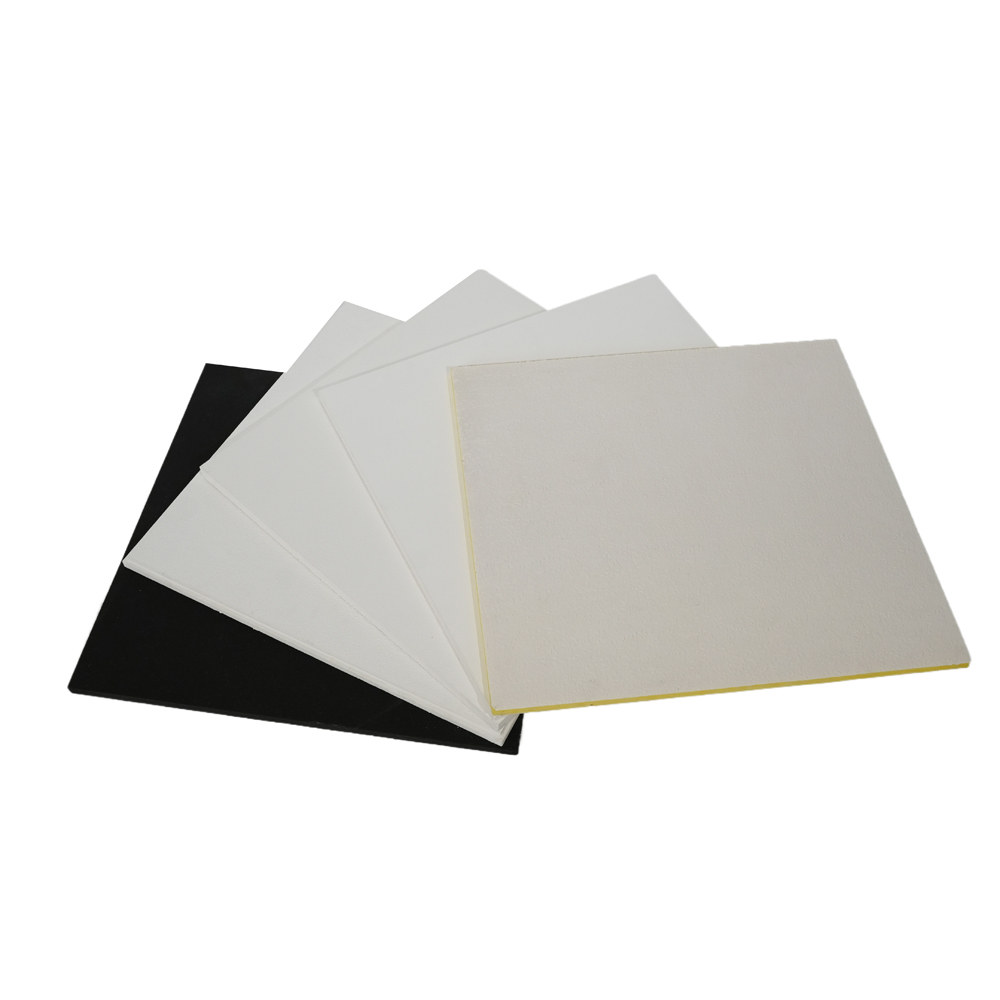

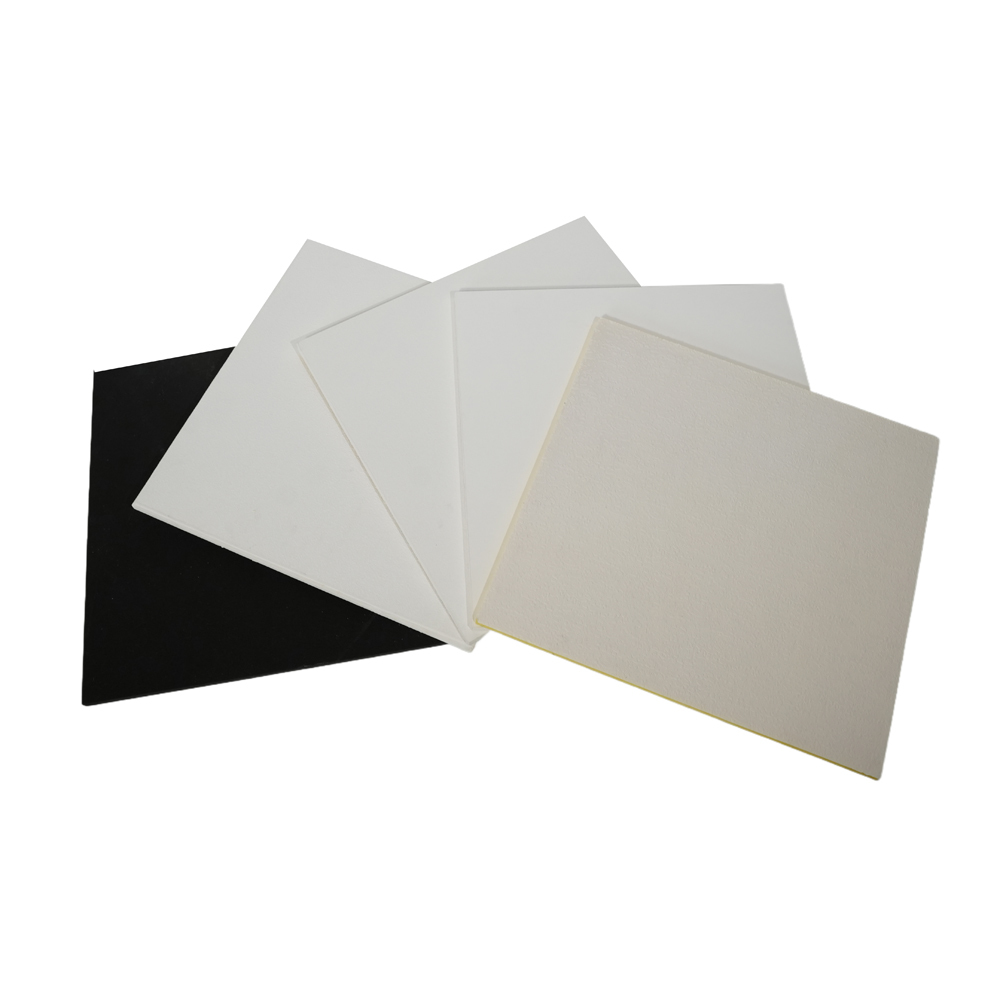

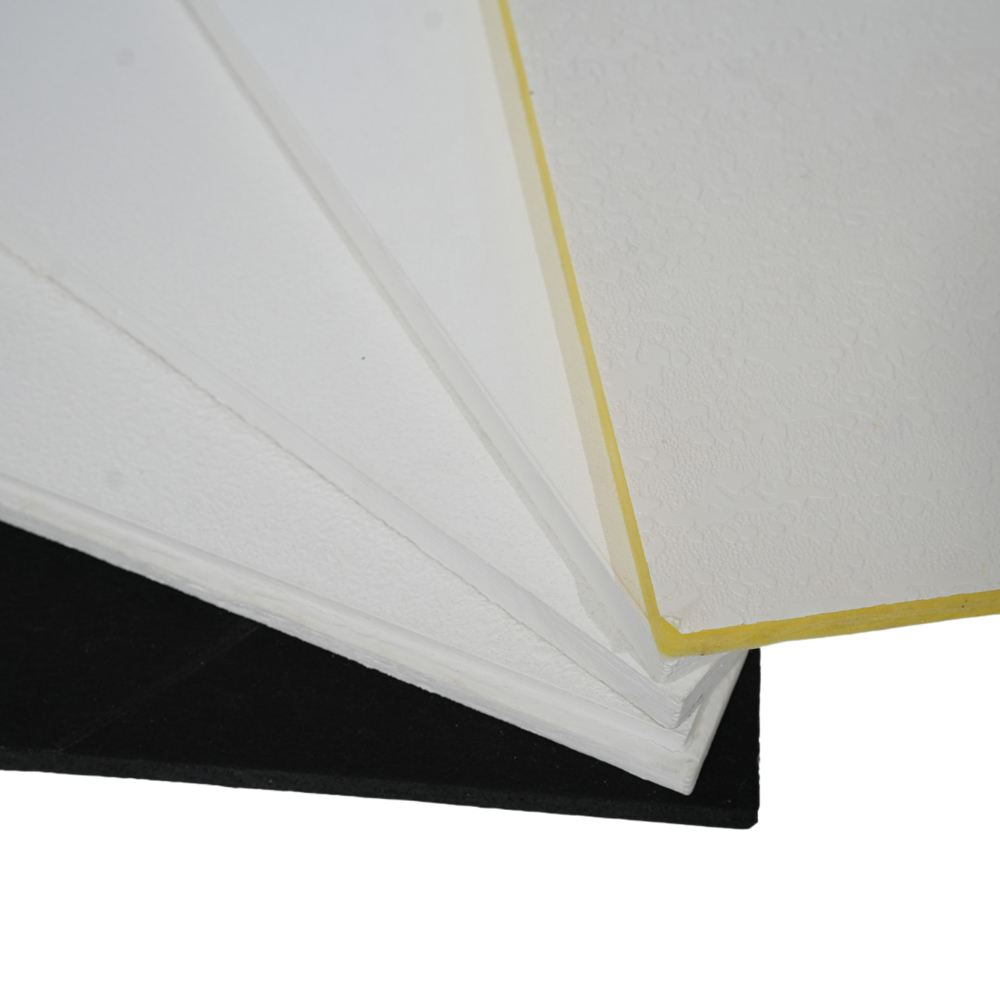

FANRYN fiberglass ceiling board is manufactured from high density fiberglass wool. The visible face has a decorative fiberglass tissue and the back of the tile is covered with normal tissue. The four edges are sealed and square. The tiles will be parallel to grids system after installation.
Product feature of the fiberglass ceiling panel
-Non-Combustible Safety: Certified as an inherently fire-resistant material, it provides reliable protection and ensures full compliance with the most stringent building safety standards and fire codes.
-Exceptional Dimensional Stability: Engineered to resist sagging, warping, or delamination over time, it maintains long-term structural integrity and a consistently flat, seamless installed appearance for the life of the installation.
-Superior Acoustic Performance: Delivers excellent sound absorption, significantly enhancing acoustic comfort and effective noise control in a wide range of interior environments, from offices to residential spaces.
-Eco-Conscious Building Material: Classified as a premier green building product, it supports sustainable construction practices and contributes directly to environmental certification goals such as LEED and BREEAM.
-Versatile Aesthetic Finishes: Available laminated with decorative fiberglass tissue or PVC facing, offering both durability and design flexibility to meet diverse architectural and interior design requirements.
Product Specifications
|
Material |
|
|
Density |
90-130kg/m3 |
|
Face |
Painting laminated with decorative fiberglass tissue or PVC facing |
|
Color |
White, black and others to order |
|
Fire-resistant |
Class A |
|
Thermal-resistant |
≥0.5 (m2·k/w) |
|
NRC |
0.9-1.0 |
|
Humidity |
Dimensionally stable with RH up to 95% at 40℃,no sagging, wrapping or delaminating |
|
Moisture rate |
≤1%(JC/T670-2005) |
|
Environmental impact |
Tiles and packing are fully recyclable |
|
safety |
Limit of radionuclides in building materials specific activity of 226Ra: Ira≤1.0 specific activity of 226Ra, 232Th, 40K: Ir≤1.3 |
Packing and Loading Quantity for Containers
|
SIZE |
CARTON/40HQ |
PIECES/CARTON |
M2/40HQ |
|
600*600*15MM |
532 |
20 |
3830.4 |
|
600*1200*15MM |
266 |
20 |
3830.4 |
|
600*600*20MM |
532 |
15 |
2872.8 |
|
600*1200*20MM |
266 |
15 |
2872.8 |
|
600*600*25MM |
532 |
12 |
2298.24 |
|
600*1200*25MM |
266 |
12 |
2298.24 |
Installation
-use exposed grids, grids width:15mm or 24mm
-tiles are easy to trim and install
-both inches and centimeters grids are available
Product application
classrooms, offices, shopping center, etc.
Main Facing:
Production packing of the glass wool board
Carton or plastic bag
Note: OEM is acceptable
टैग:
शीसे रेशा से बने अछूता छत टाइलें,
शीशा फाइबर की छत के पैनल,
शीसे रेशा छत बोर्ड
